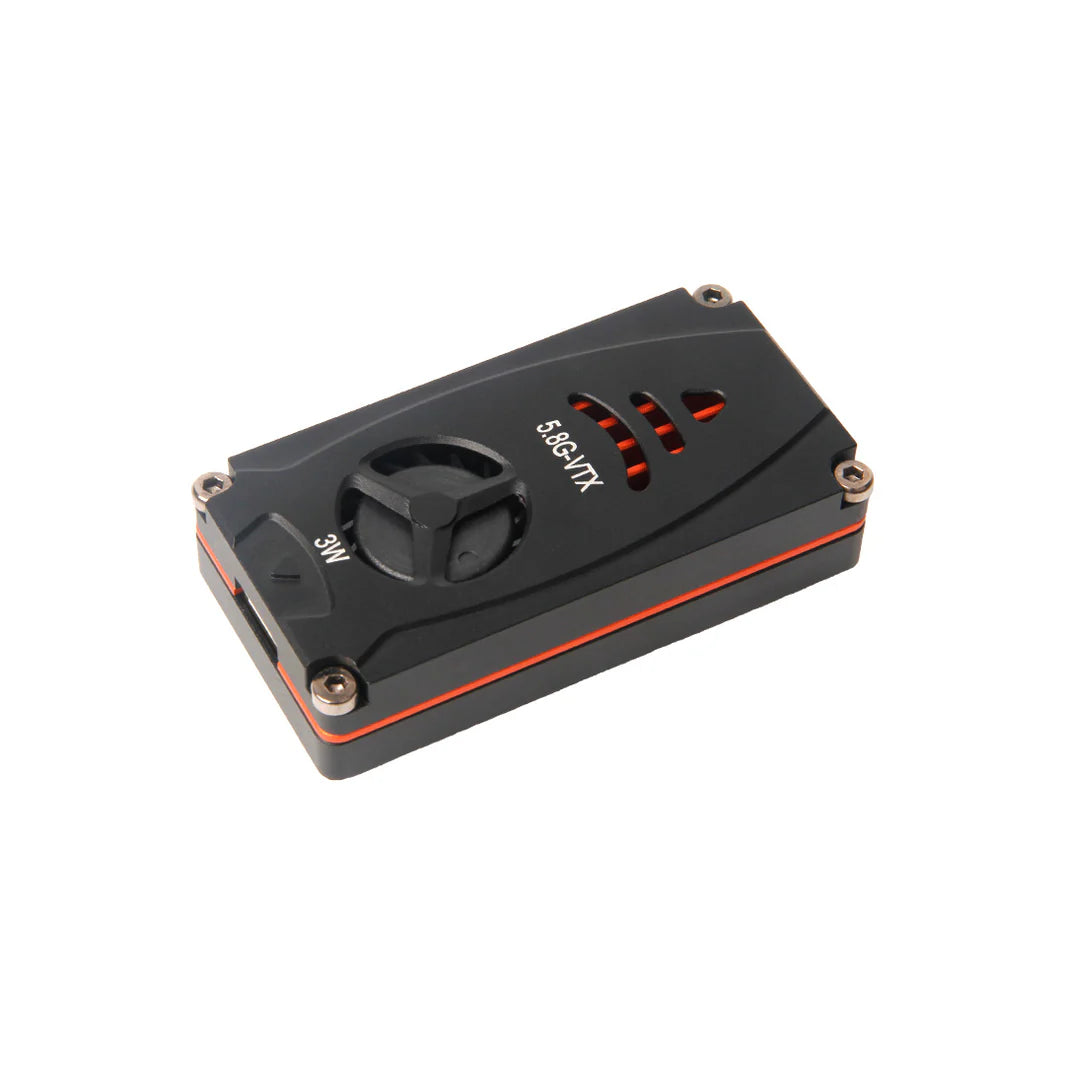

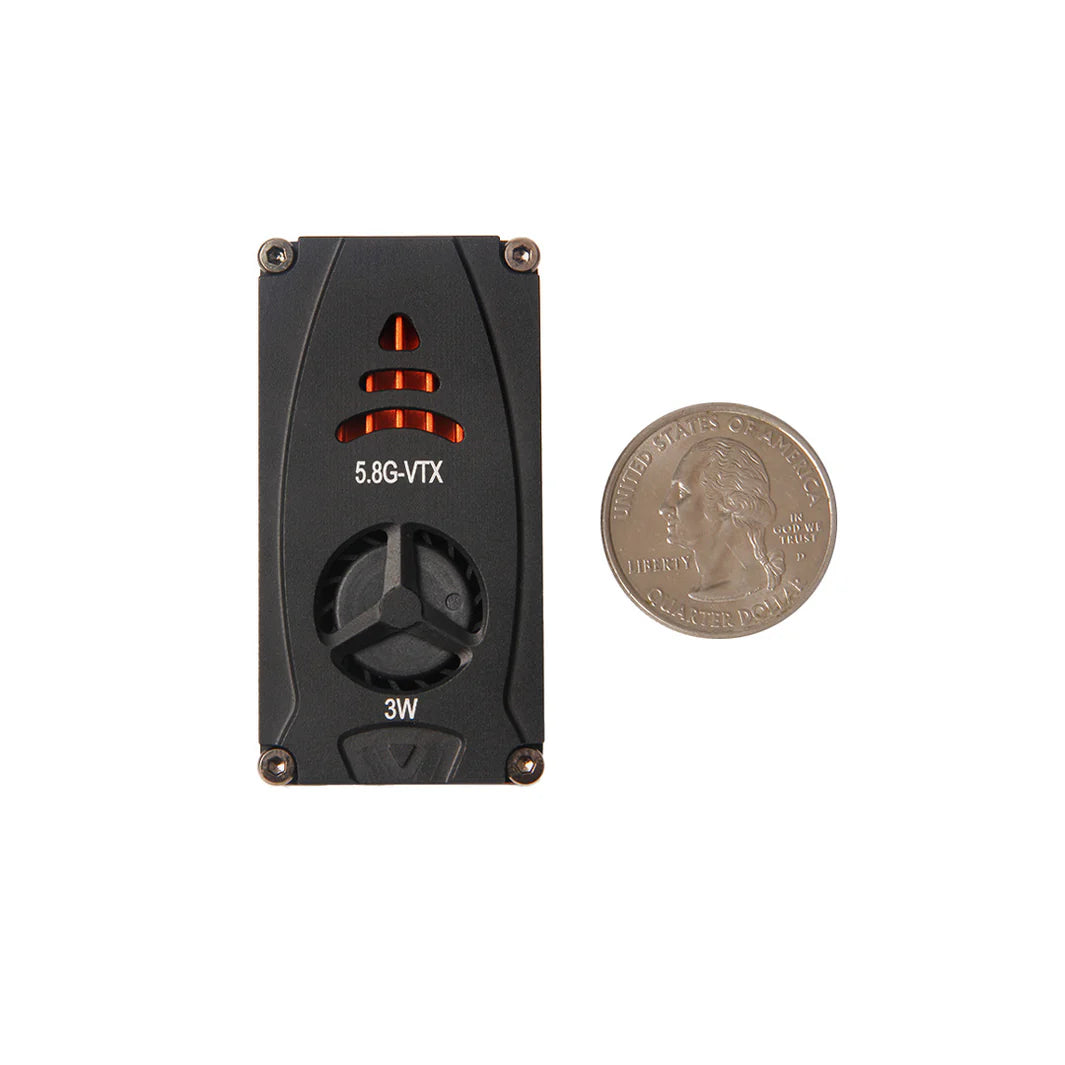

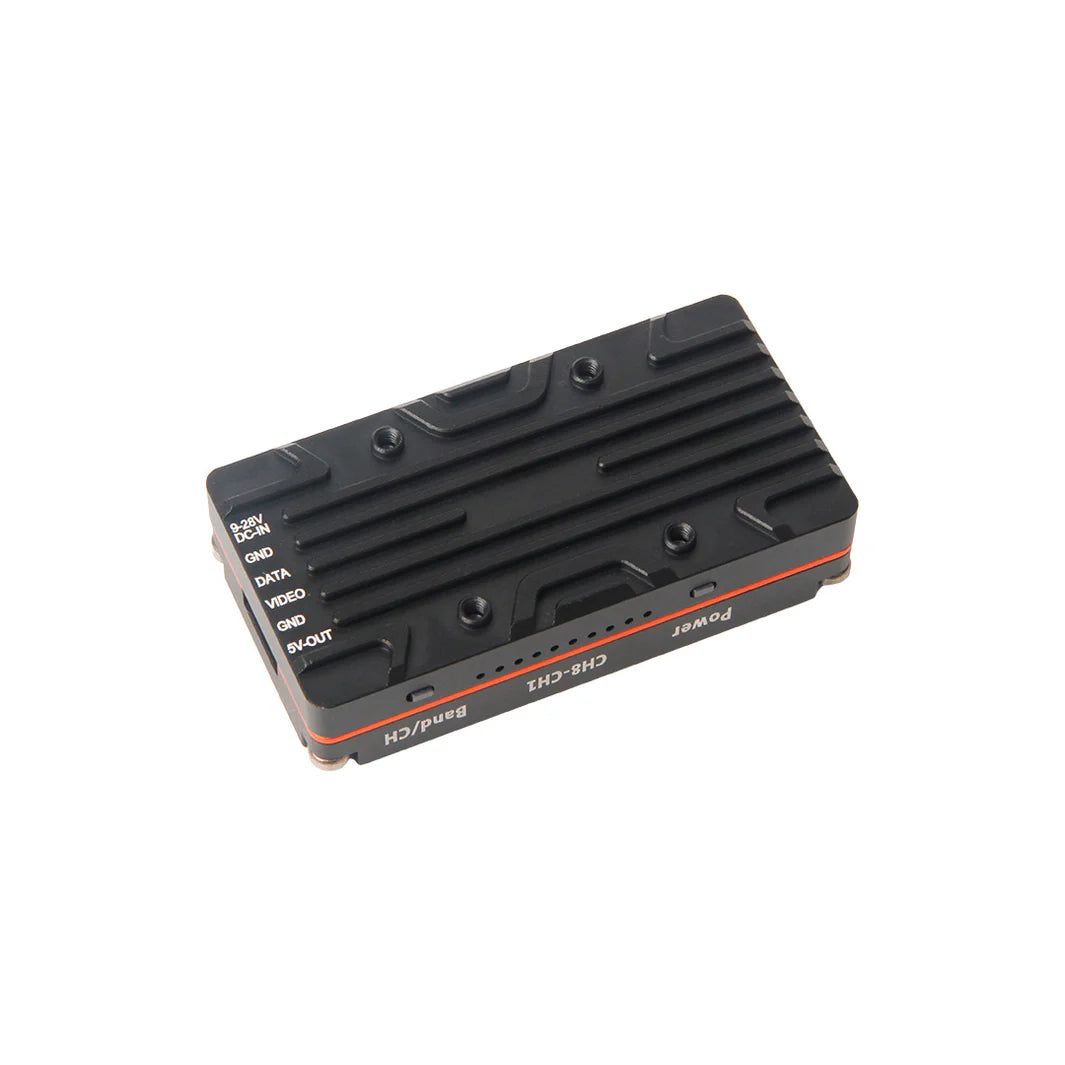

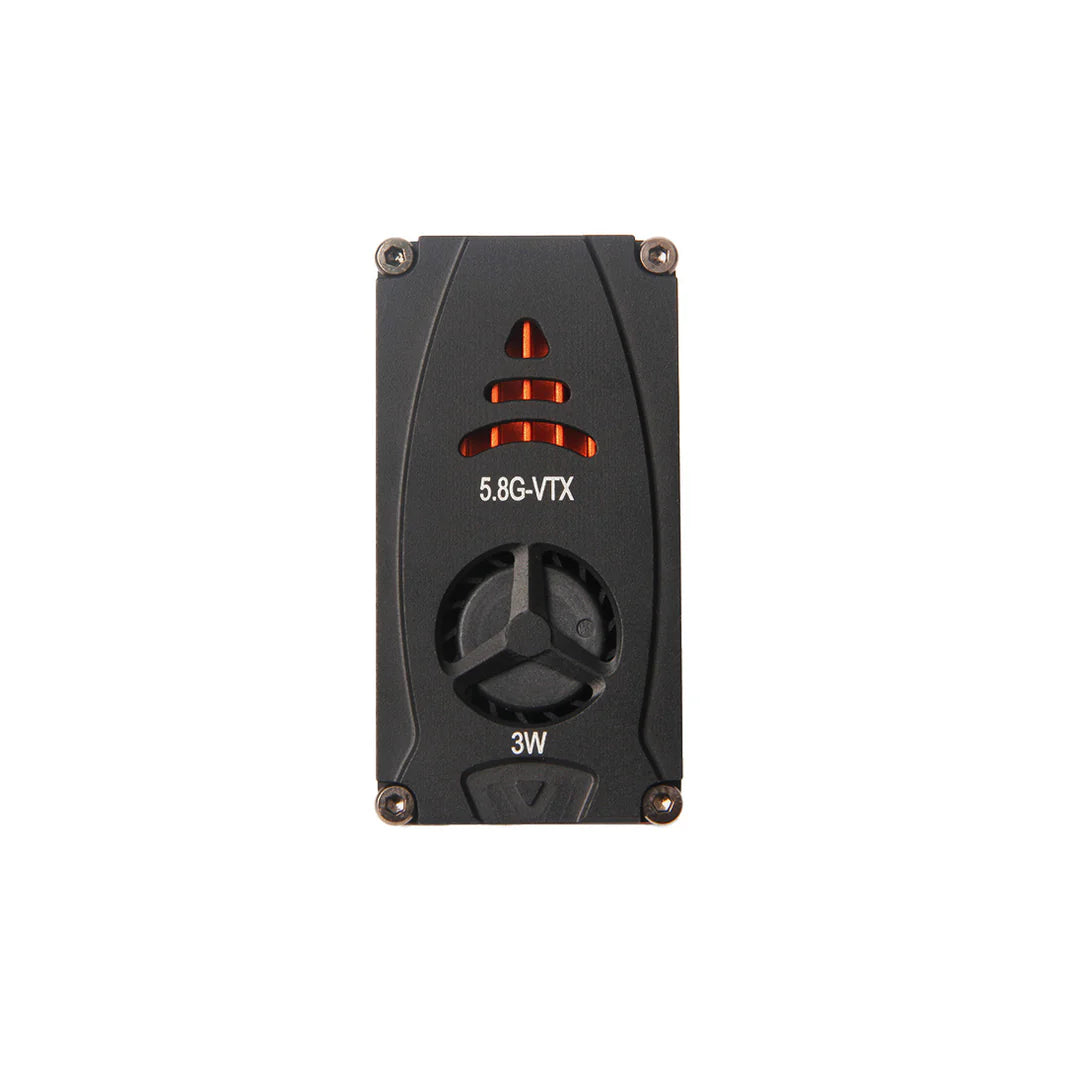

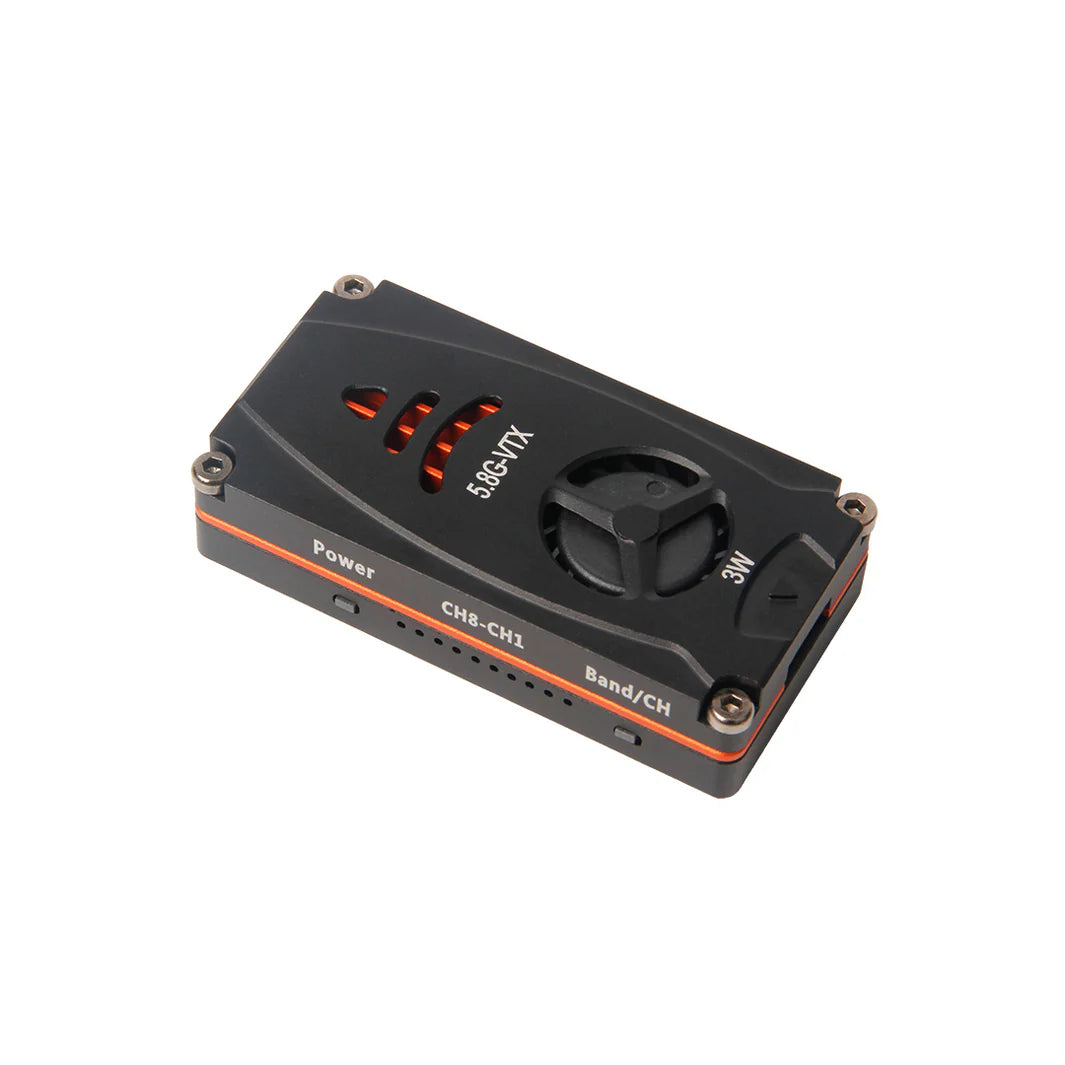

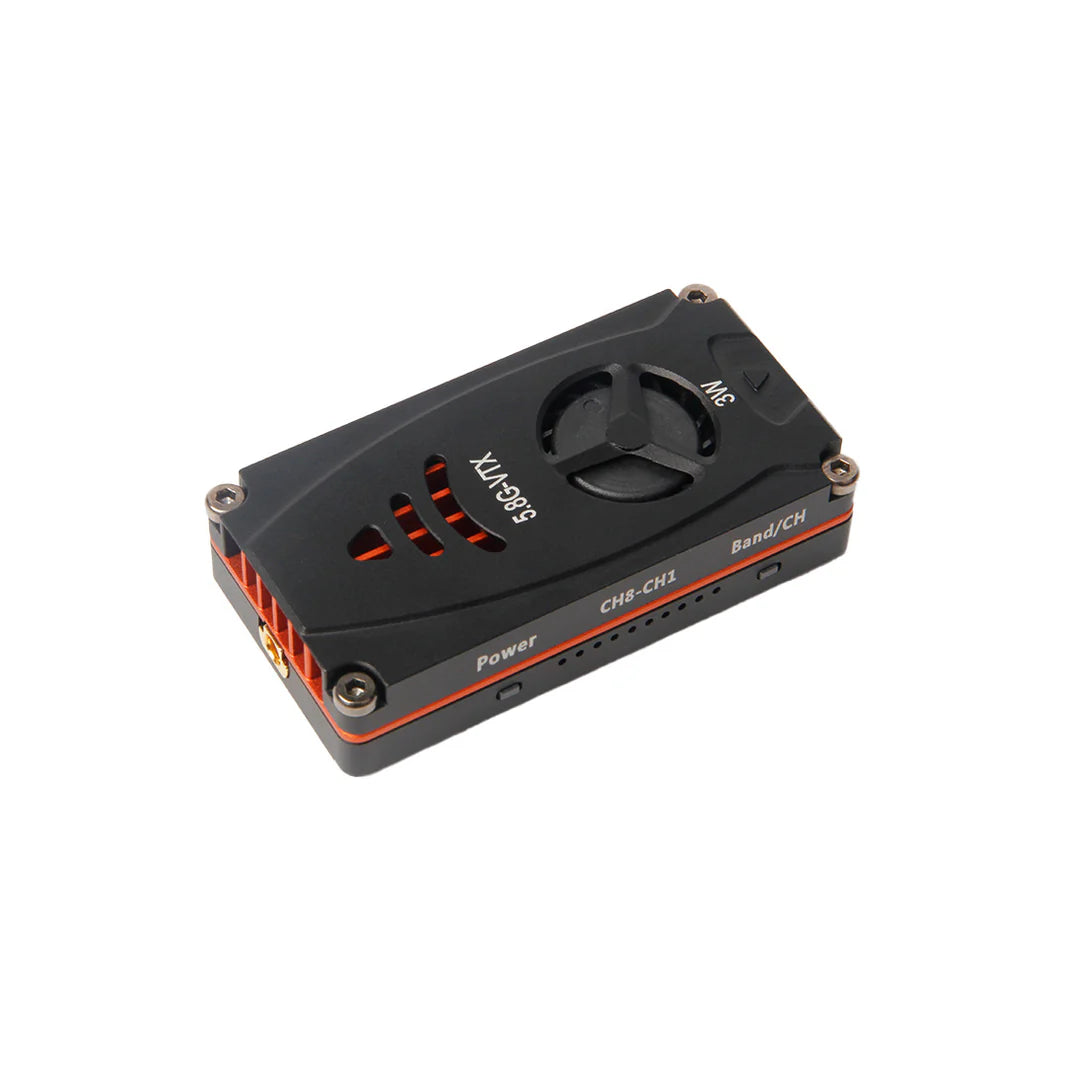

Holybro Atlatl HV 5.8G 3W VTx (Pro Version)

The Holybro Atlatl HV 5.8G Pro VTx is a high-performance video transmitter built for professional FPV pilots.

With extended dimensions and advanced SmartAudio/IRC Tramp integration, it provides clean video feed with up to 3W of switchable transmission power.

Key Features

• 5.8GHz frequency with 7-band coverage
• 56 selectable transmission channels
• Adjustable output power: up to 3W (25mW / 400mW / 600mW / 1.6W / 3W)

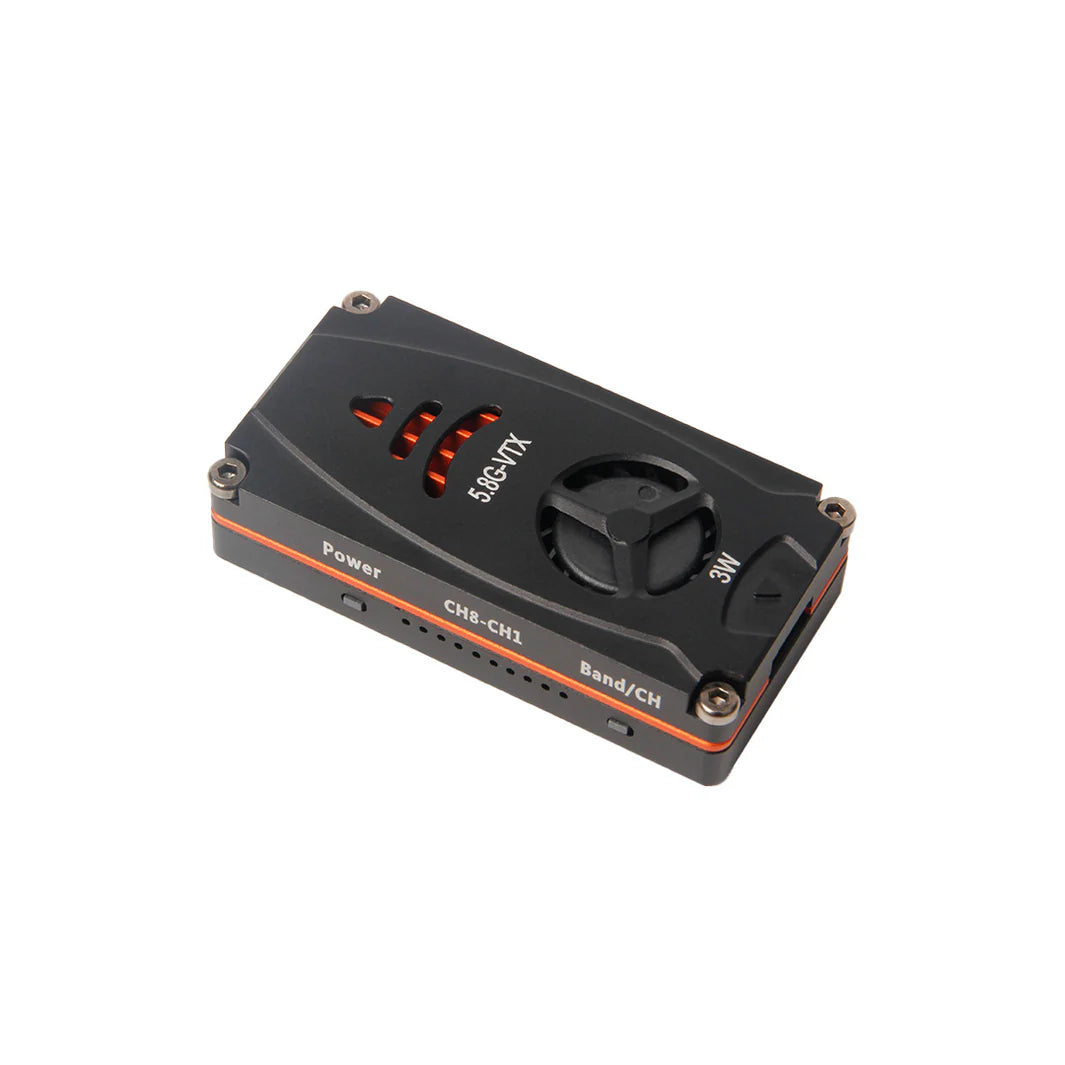

• SmartAudio, IRC Tramp & key button control
• MMCX antenna connector for strong durability
• Wide voltage input: 2–6S LiPo
• NTSC/PAL video compatibility

• Larger Pro form factor for better cooling

Specifications

• Frequency: 5.8GHz
• Bands: A, B, E, F, R, L, X
• Channels: 56
• Operating Mode: Key button, SmartAudio, IRC Tramp (Pro)
• Power Output: 25mW / 400mW / 600mW / 1.6W / 3W

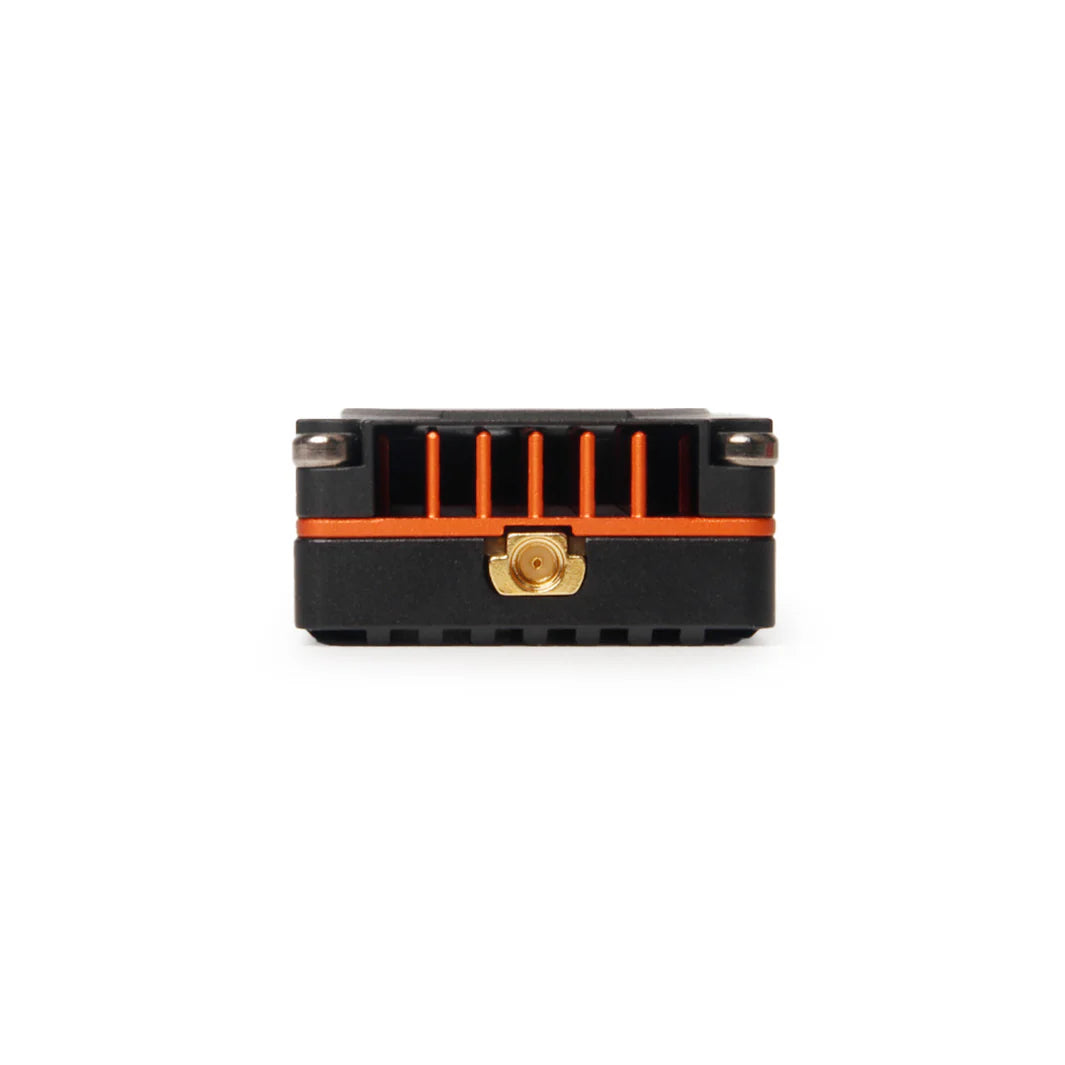

• Antenna Connector: MMCX
• Voltage Input: 2–6S
• Current Consumption: 1.3A @ 12VDC (3000mW)
• RF Impedance: 50Ω
• Video Impedance: 75Ω
• Video Amplitude: CVBS 0.8–1.2V P-P
• Video Format: NTSC/PAL

• Dimensions: 53.79 × 27.8 × 13.5 mm

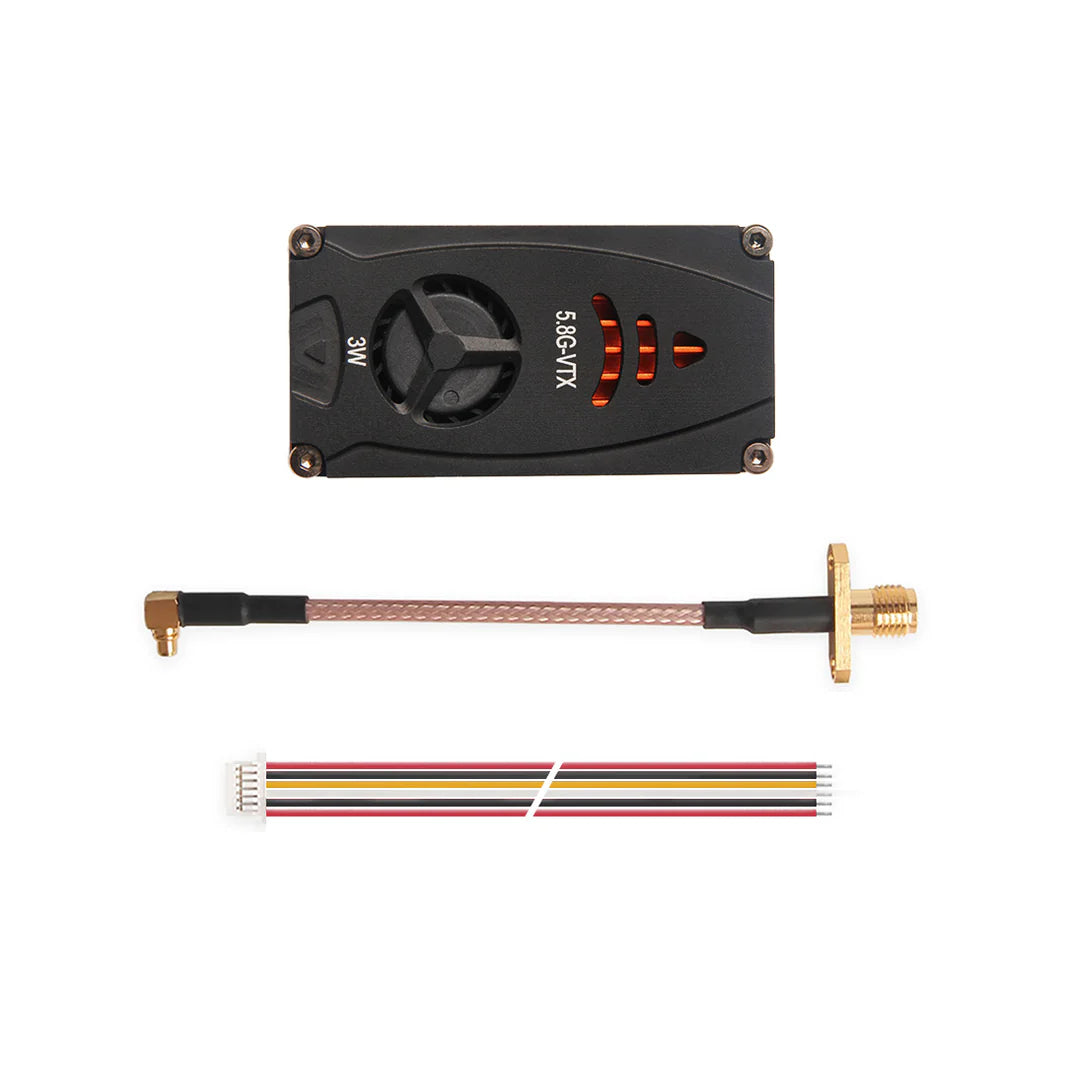

Package Includes

• 1× Holybro Atlatl HV 5.8G Pro VTx

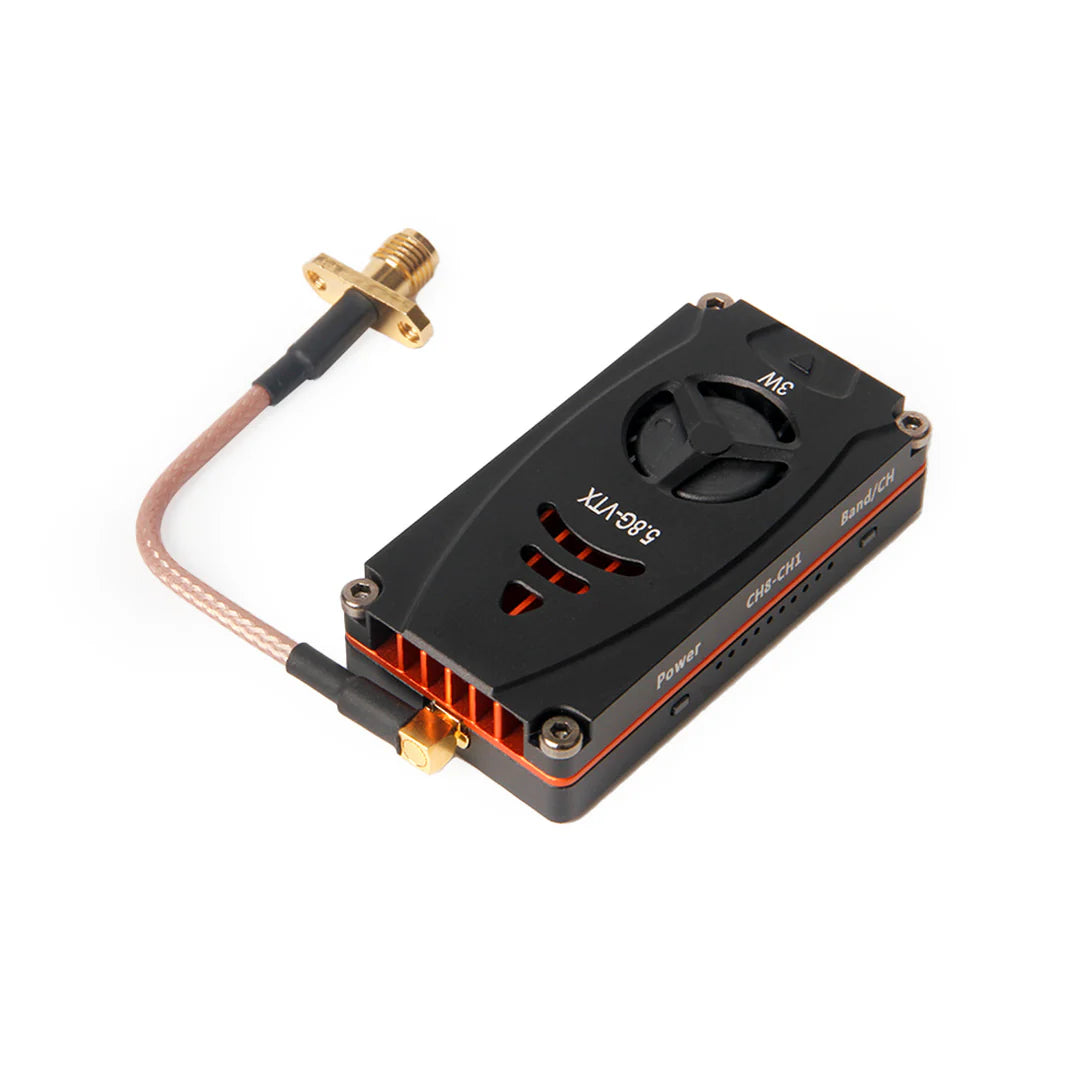

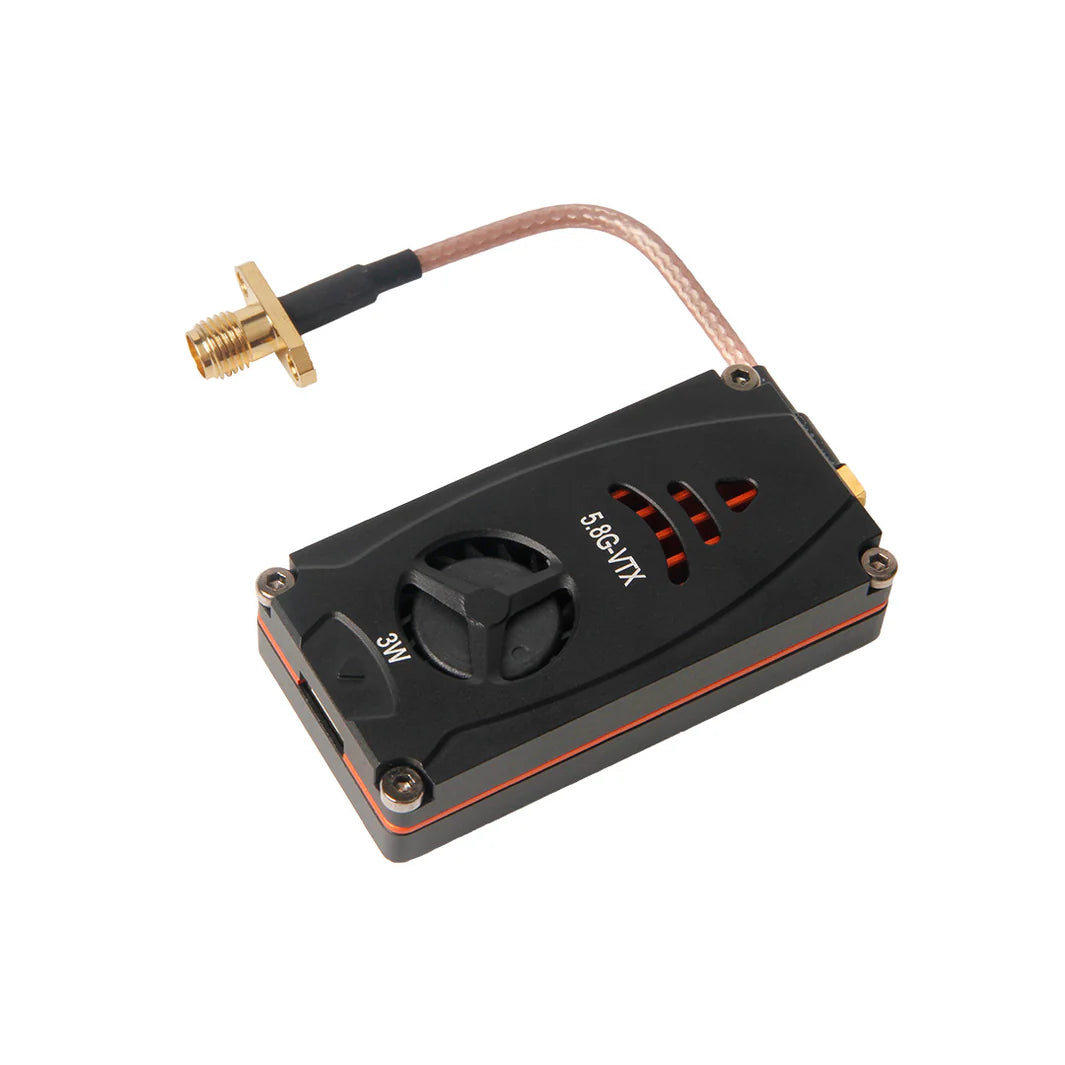

• 1× 80mm SMA–MMCX Cable

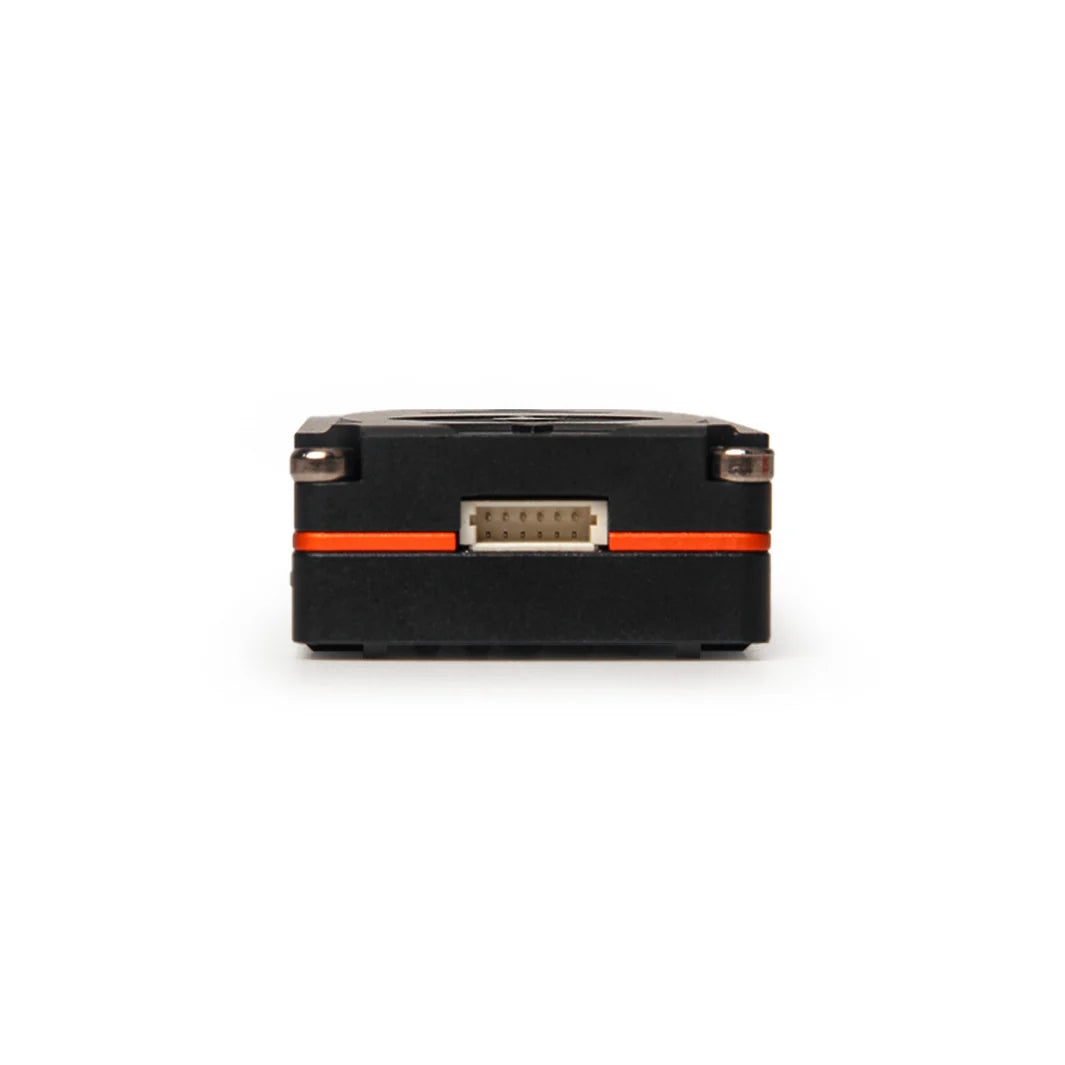

• 1× 70mm 6-pin JST SH Wire
