Holybro Atlatl HV 5.8G 3W VTx (Standard Version)

The Holybro Atlatl HV 5.8G Standard VTx is a compact and reliable FPV video transmitter with adjustable output power up to 3W.

It supports SmartAudio, IRC Tramp, and key button operation for easy control. Designed for long-range FPV flights with stable video transmission.

Key Features

• 5.8GHz frequency with 7-band support
• 56 total transmission channels
• Adjustable power levels up to 3W
• SmartAudio, IRC Tramp & key button control
• MMCX antenna connector for secure fit
• Wide 2–6S LiPo voltage input
• NTSC/PAL video compatibility

• Compact and durable form factor

Specifications

• Frequency: 5.8GHz
• Bands: A, B, E, F, R, L, X
• Channels: 56
• Operating Mode: Key button, SmartAudio, IRC Tramp (Pro)
• Power Output: 25mW / 200mW / 600mW / 1.6W / 2.5W / 3W
• Antenna Connector: MMCX
• Voltage Input: 2–6S
• Current Consumption: 1.3A @ 12VDC (3000mW)
• RF Impedance: 50Ω
• Video Impedance: 75Ω
• Video Amplitude: CVBS 0.8–1.2V P-P
• Video Format: NTSC/PAL

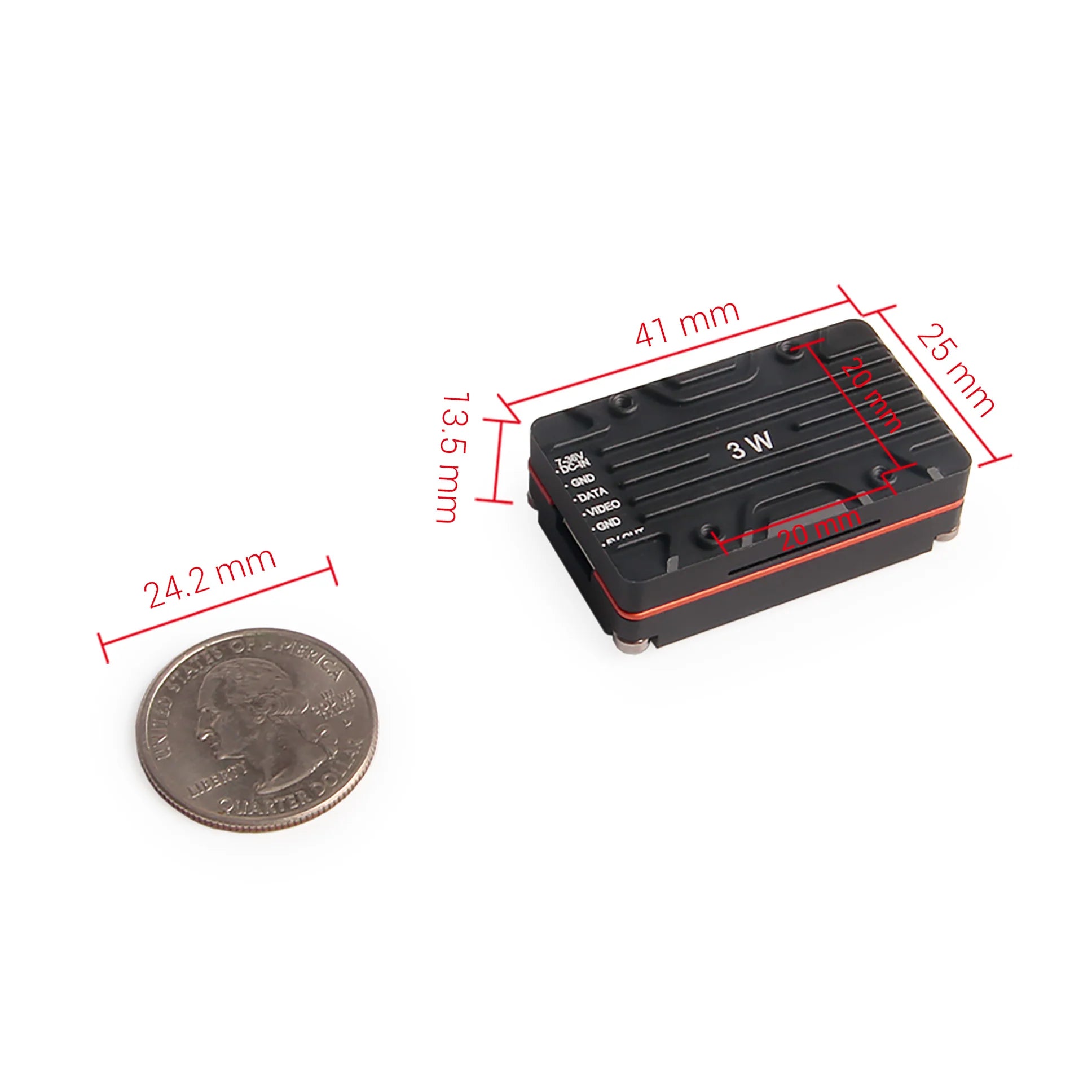

• Dimensions: 40.8 × 24.8 × 13.3 mm

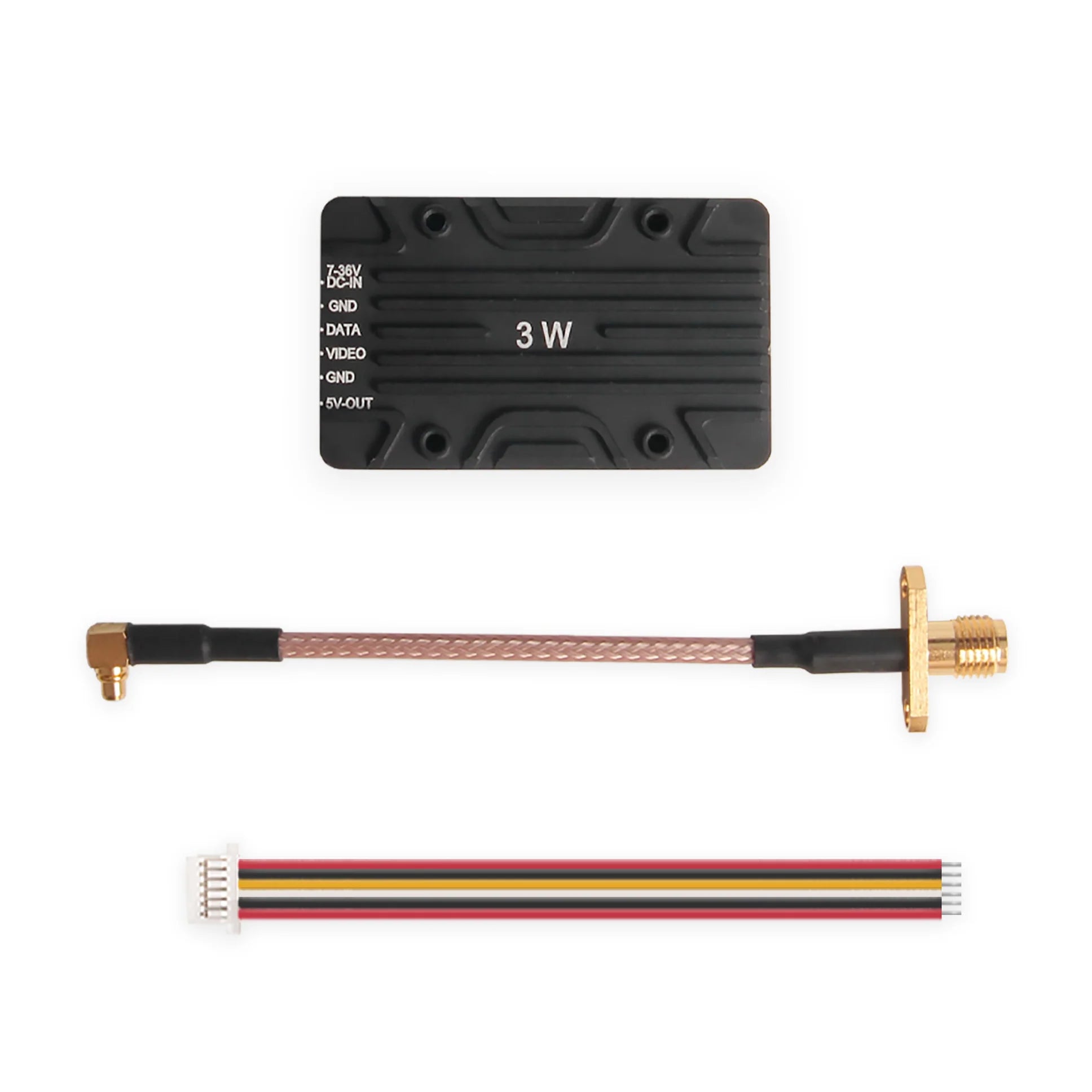

Package Includes

• 1× Holybro Atlatl HV 5.8G Standard VTx
• 1× 80mm SMA–MMCX Cable

• 1× 70mm 6-pin JST SH Wire
