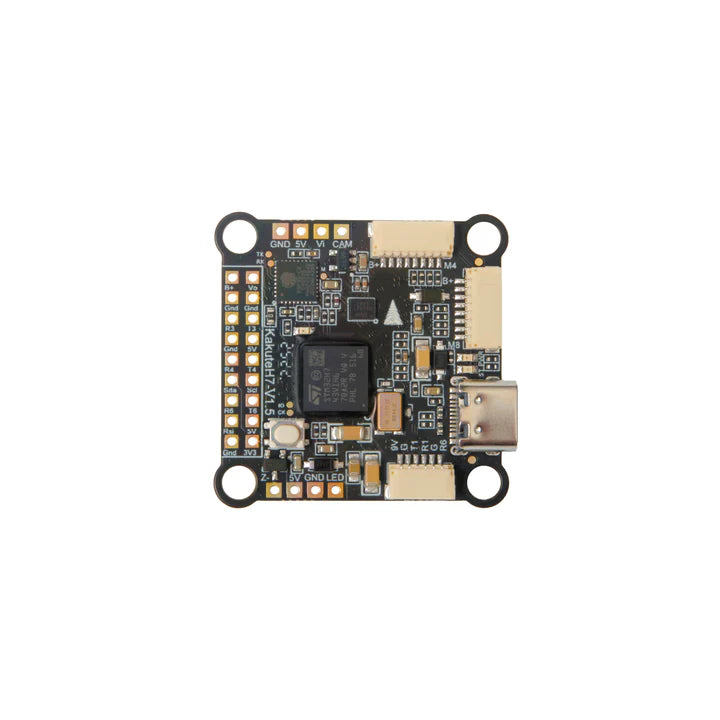

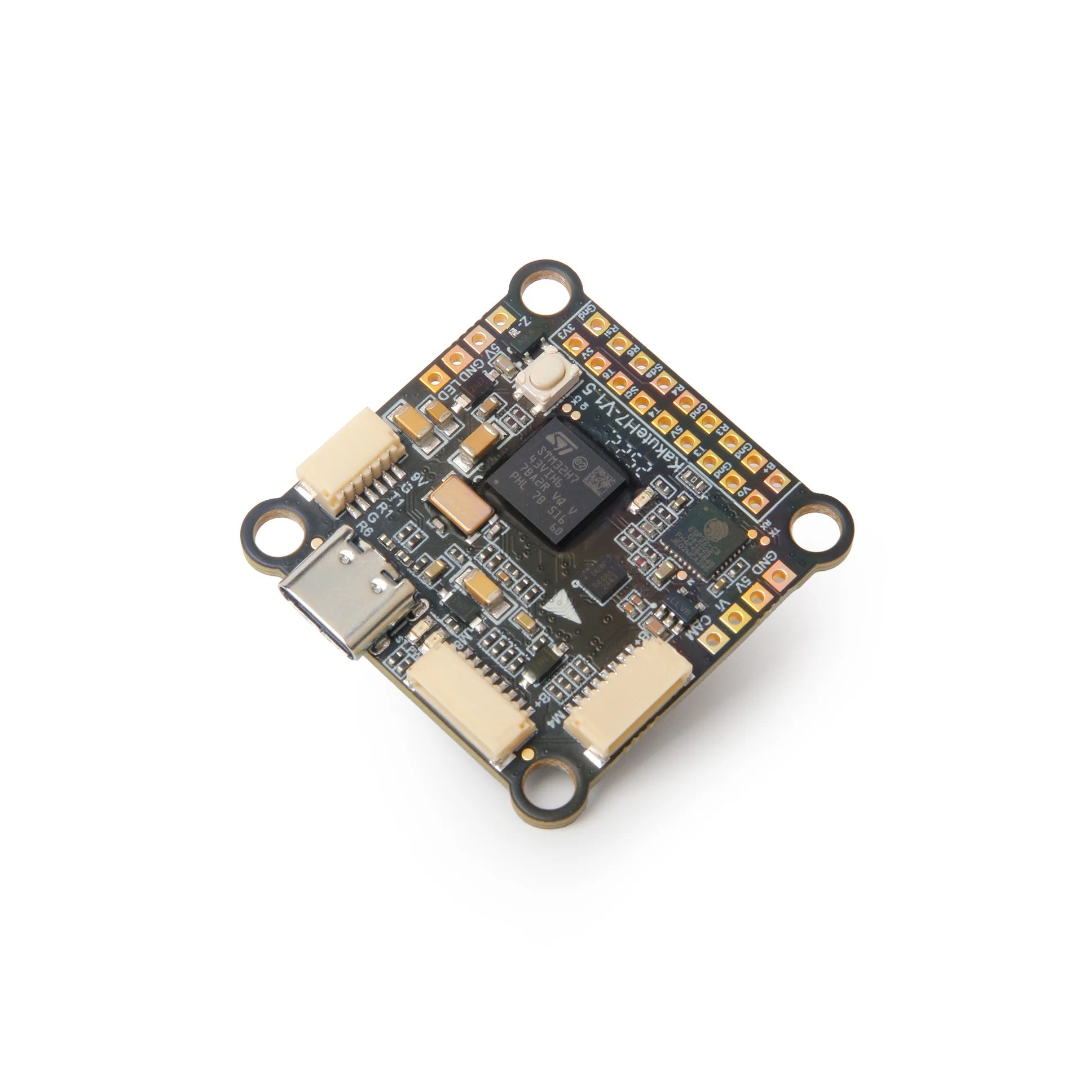

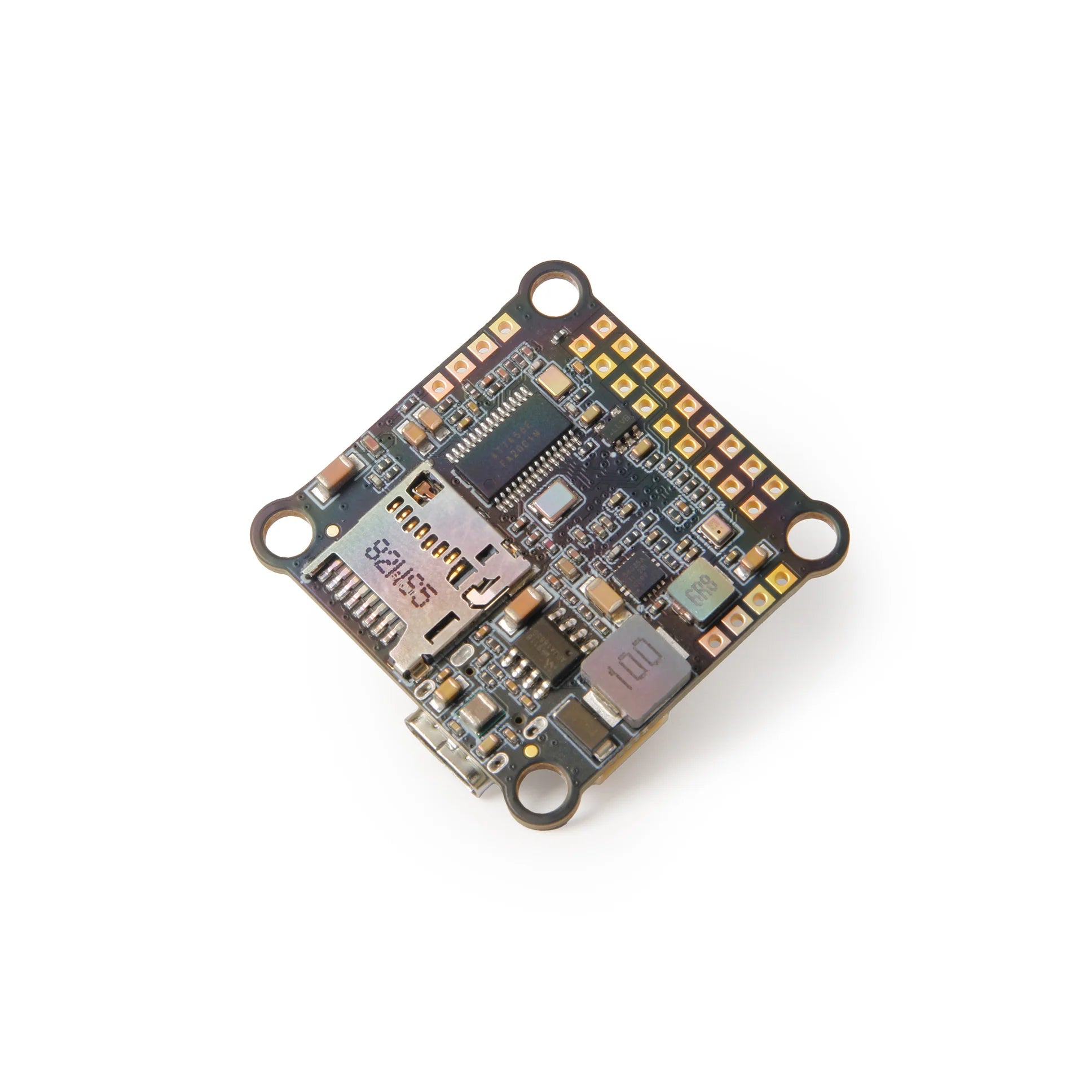

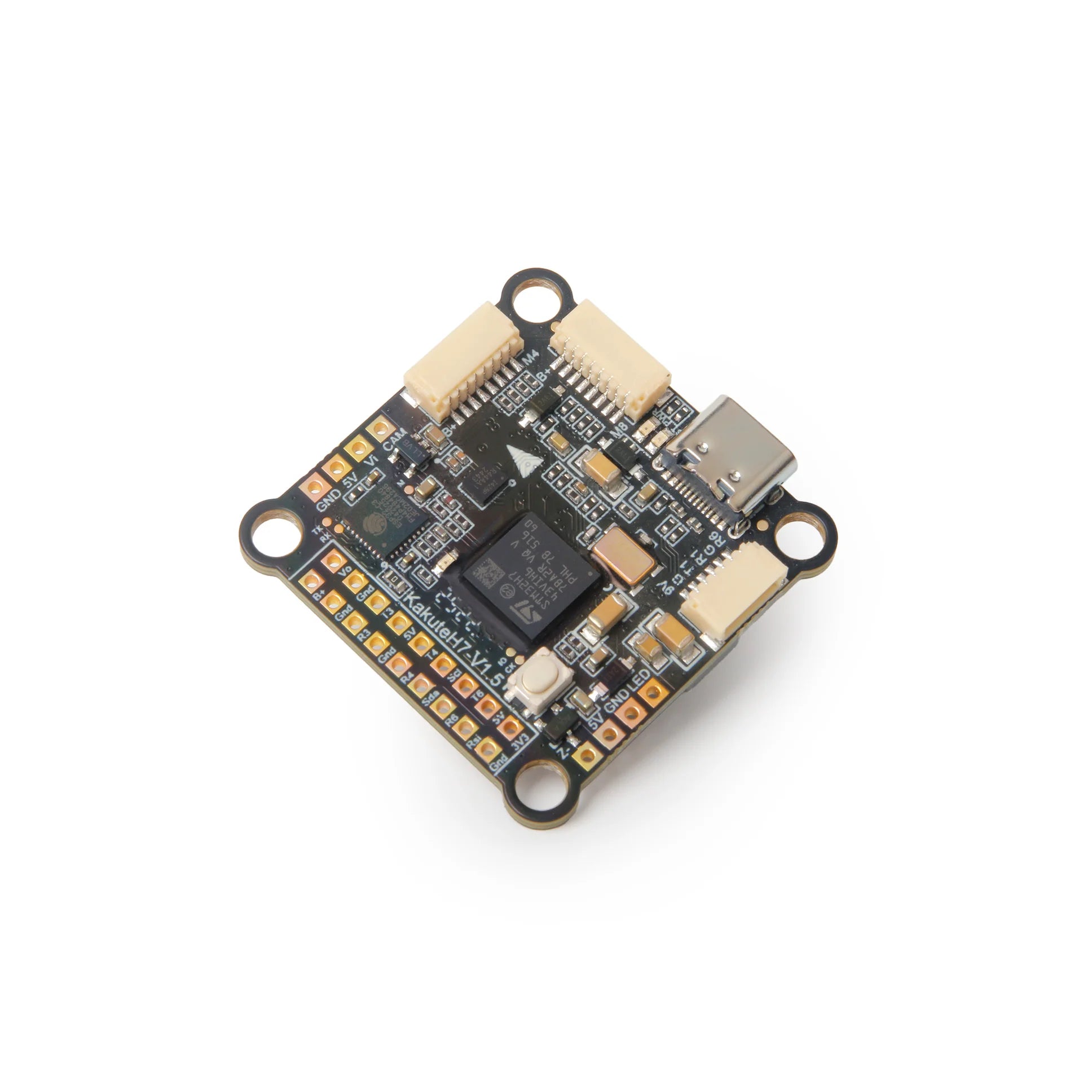

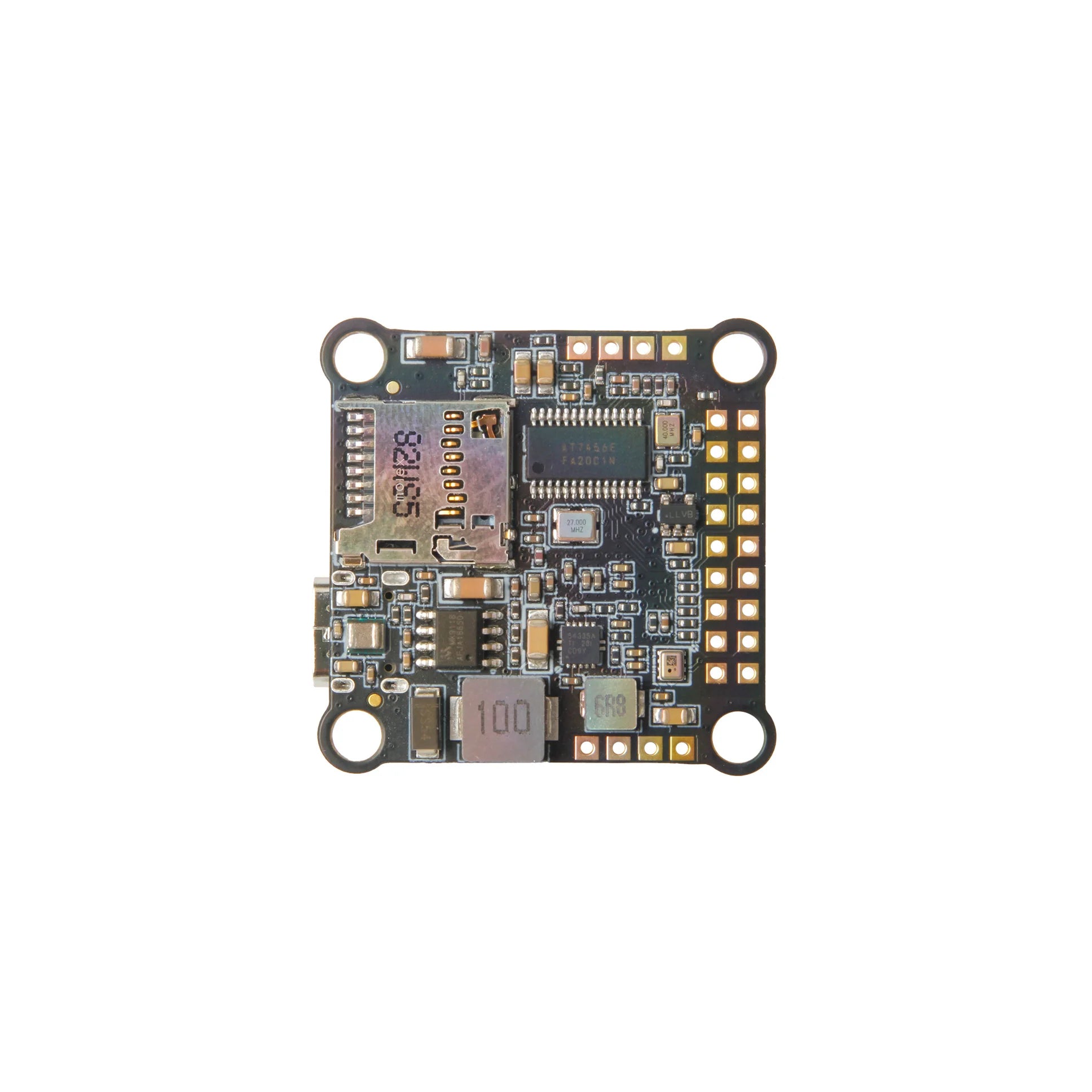

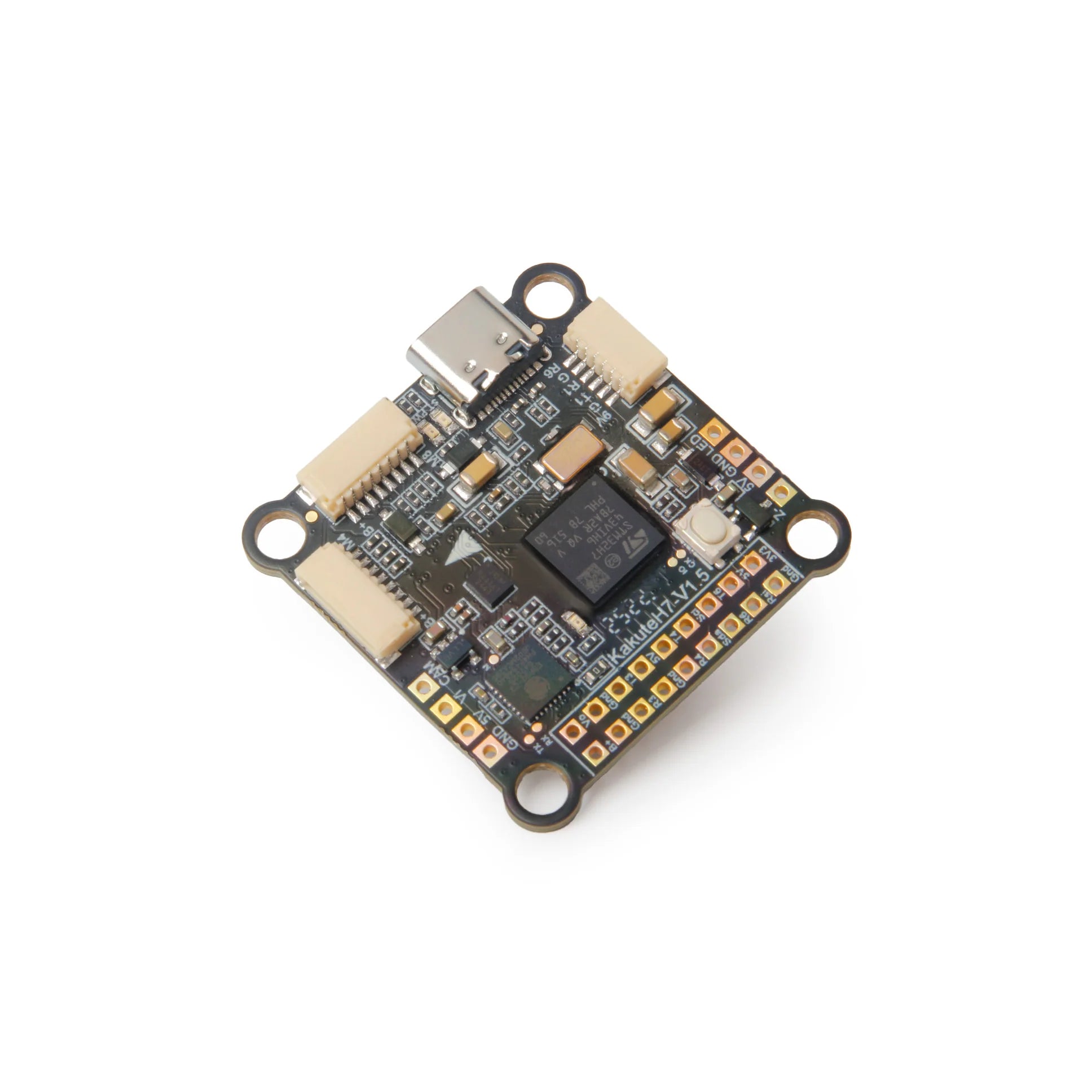

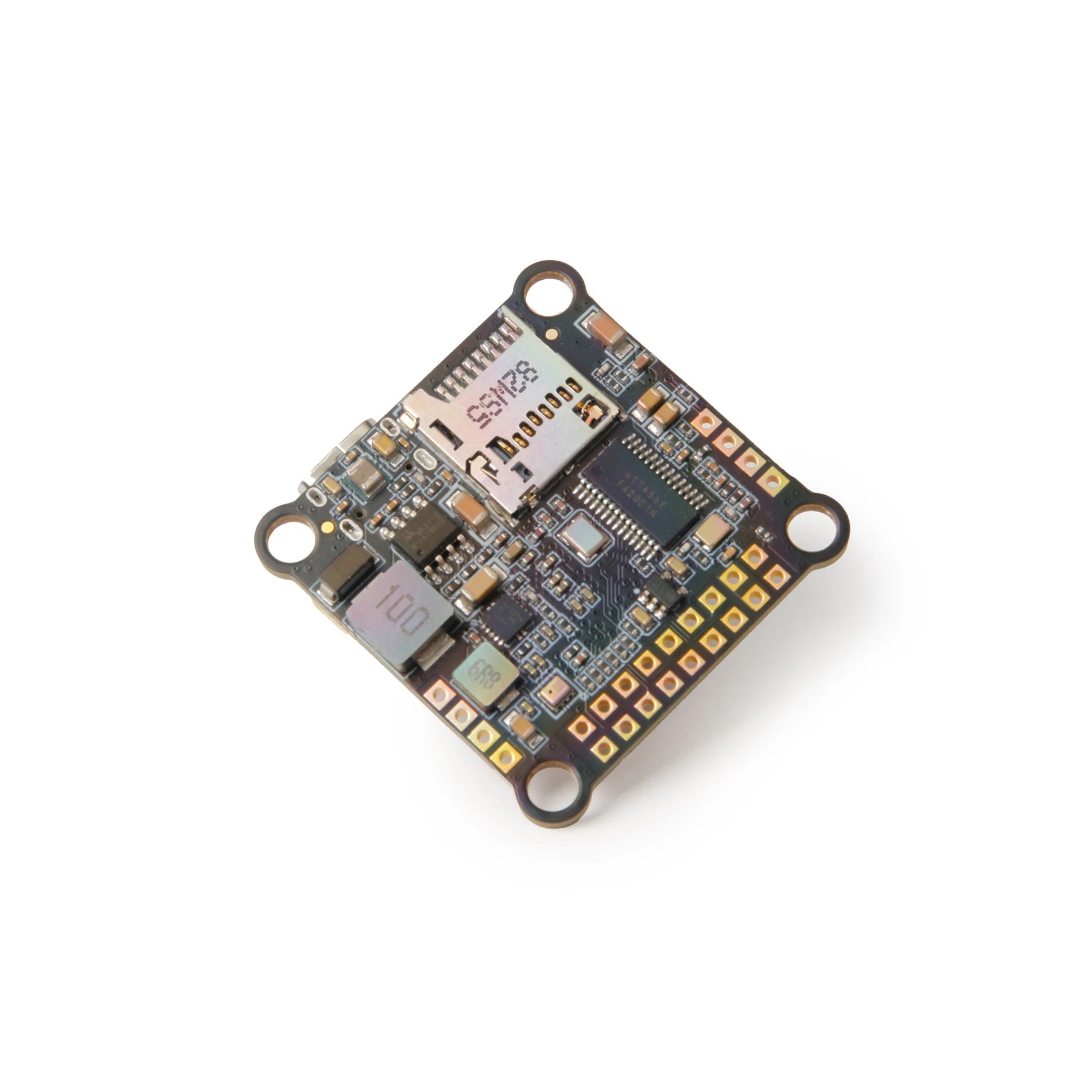

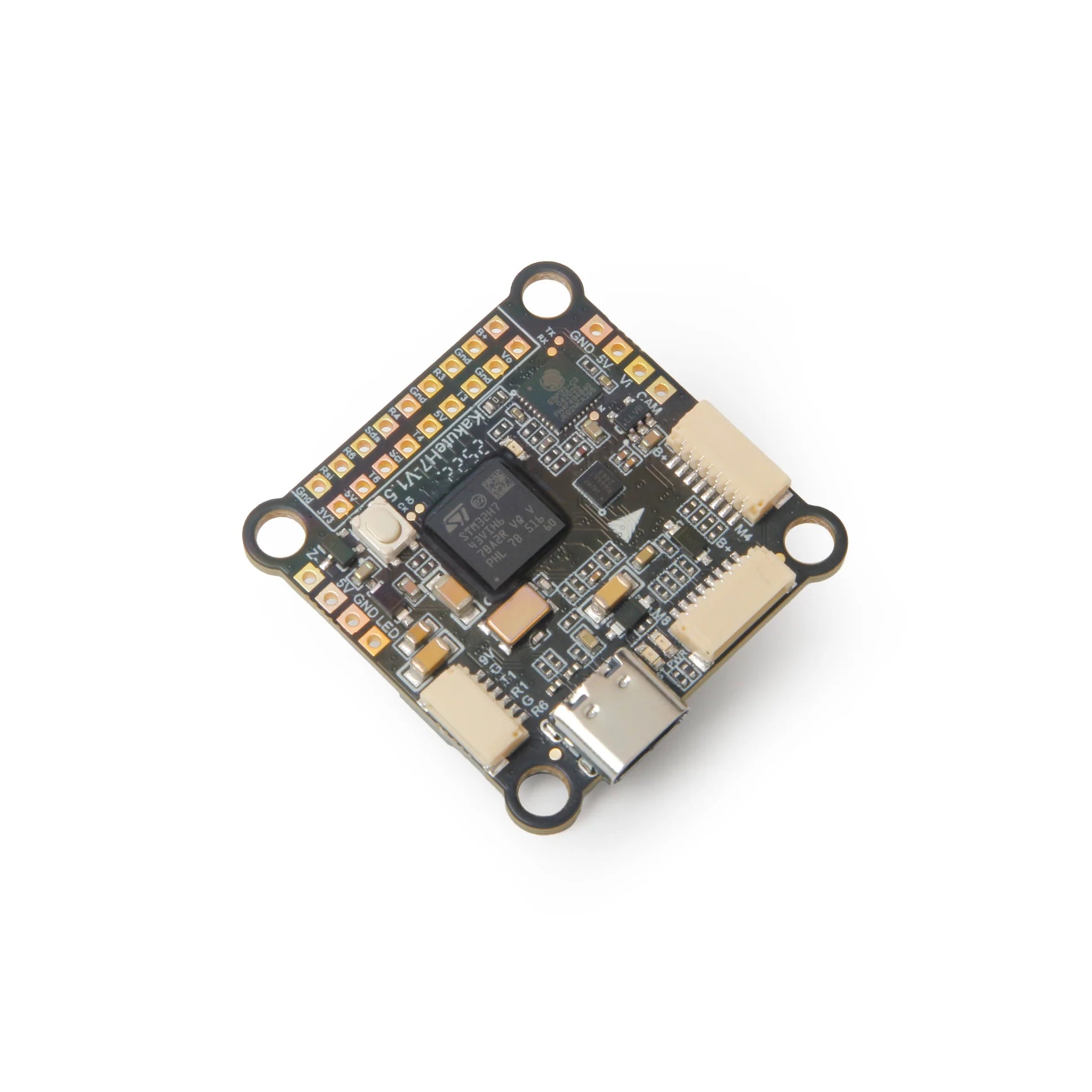

Holybro Kakute H7 V1.5 Flight Controller with STM32H743, ICM-42688P IMU, OSD, Barometer, Bluetooth (35x35mm)

The Holybro Kakute H7 V1.5 is a high-performance flight controller designed for FPV racing drones.
Powered by the STM32H743 32-bit processor running at 480 MHz, it offers advanced processing power,
reliable performance, and full support for the latest Betaflight versions.

Key Features

• MCU: STM32H743 32-bit processor, 480 MHz
• IMU: ICM-42688-P (V1.5) – replaces MPU6000
• Barometer: SPA06 (BMP280 for previous version)
• OSD: AT7456E integrated
• Onboard Bluetooth chip: ESP32-C3 (SpeedyBee App compatible)
    Note: Some SKUs are shipped without Bluetooth
• 6x UARTs (UART2 reserved for Bluetooth telemetry)
• 9x PWM outputs (8 motors + 1 LED)
• Dual JST-SH1.0 8-pin ESC ports (4-in-1 ESCs, x8/octocopter compatible)
• 1x VTX port (for HD systems like DJI/Caddx Vista & Air Unit)
• USB Type-C connector

Specifications

• Input voltage: 3S – 8S LiPo
• BEC 5V 2A, BEC 9V 3A
• Mounting: 30.5 x 30.5mm / 4mm hole with grommets
• Dimensions: 35 x 35 mm

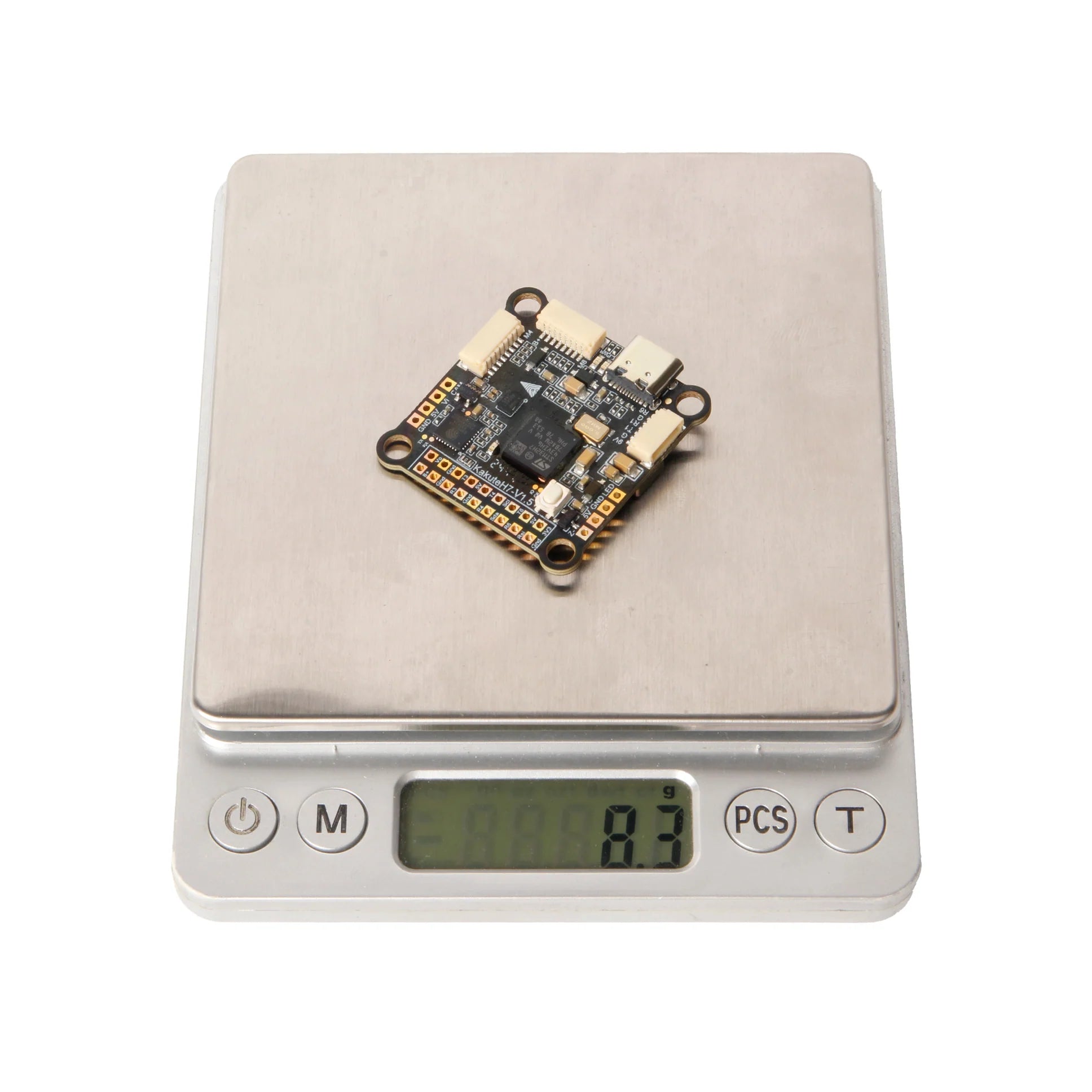

• Weight: 8g

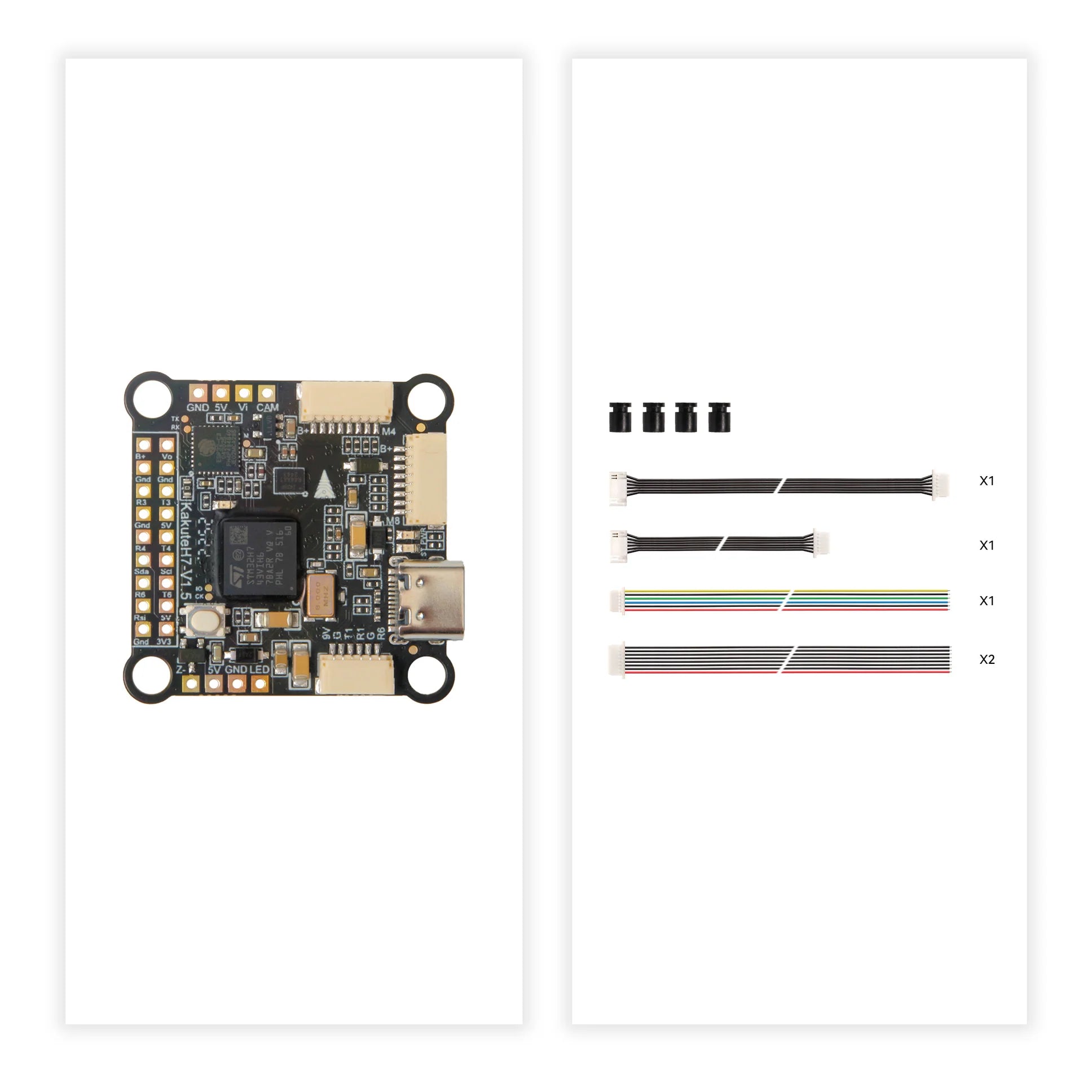

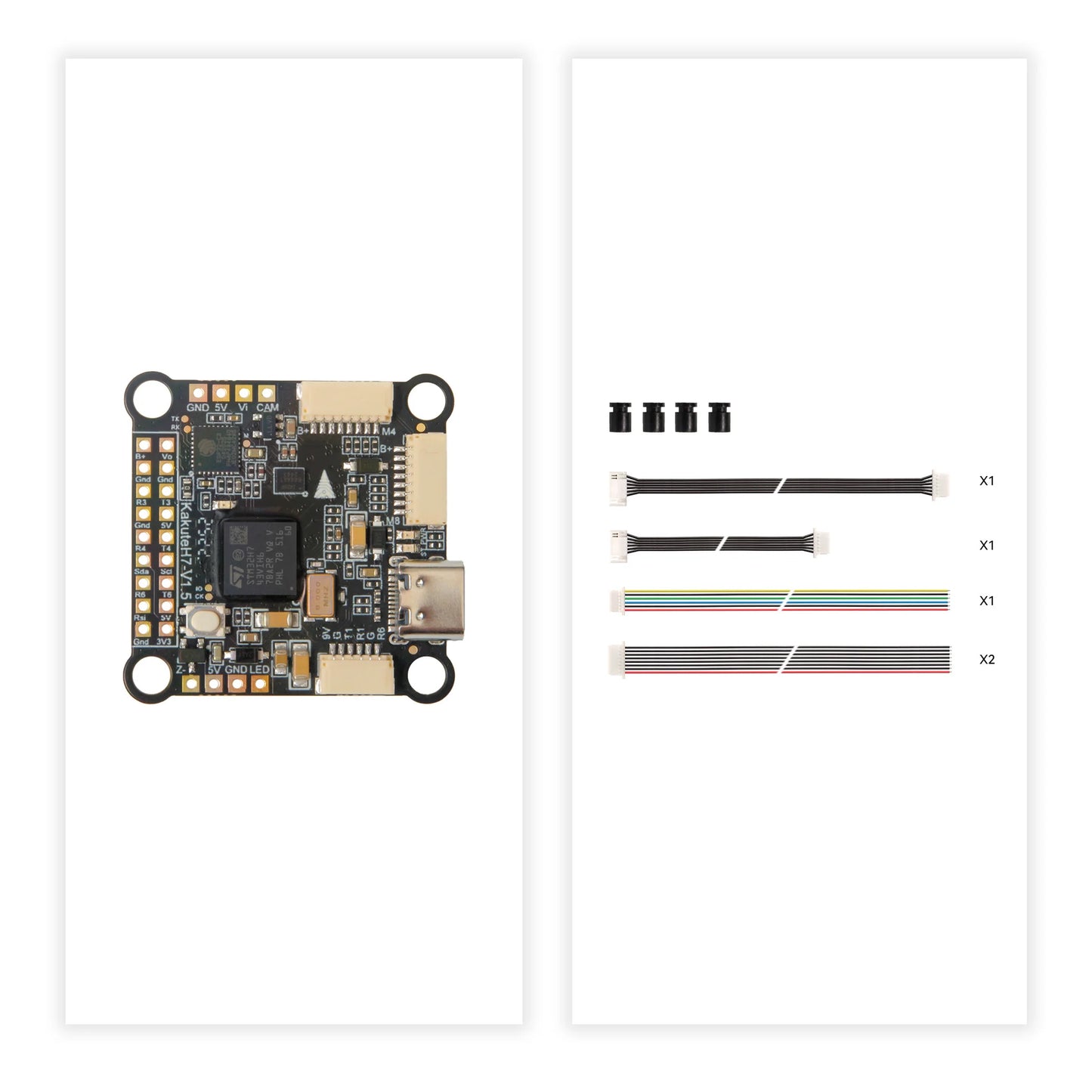

Package includes

• 1x Kakute H7 V1.5 flight controller
• 2x 8-pin ESC cables
• 1x VTX cable
• Pin headers & connectors
• Instruction manual
