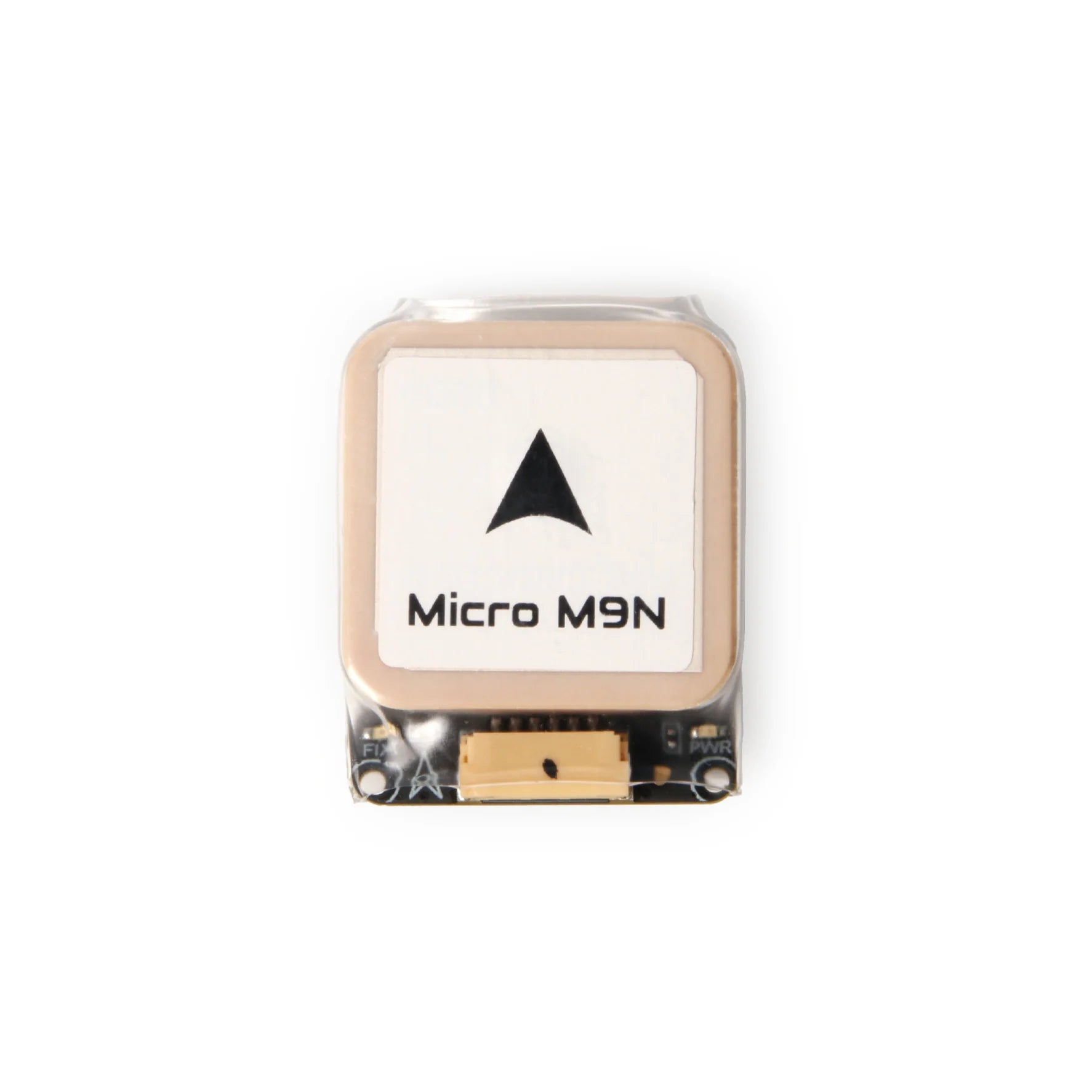

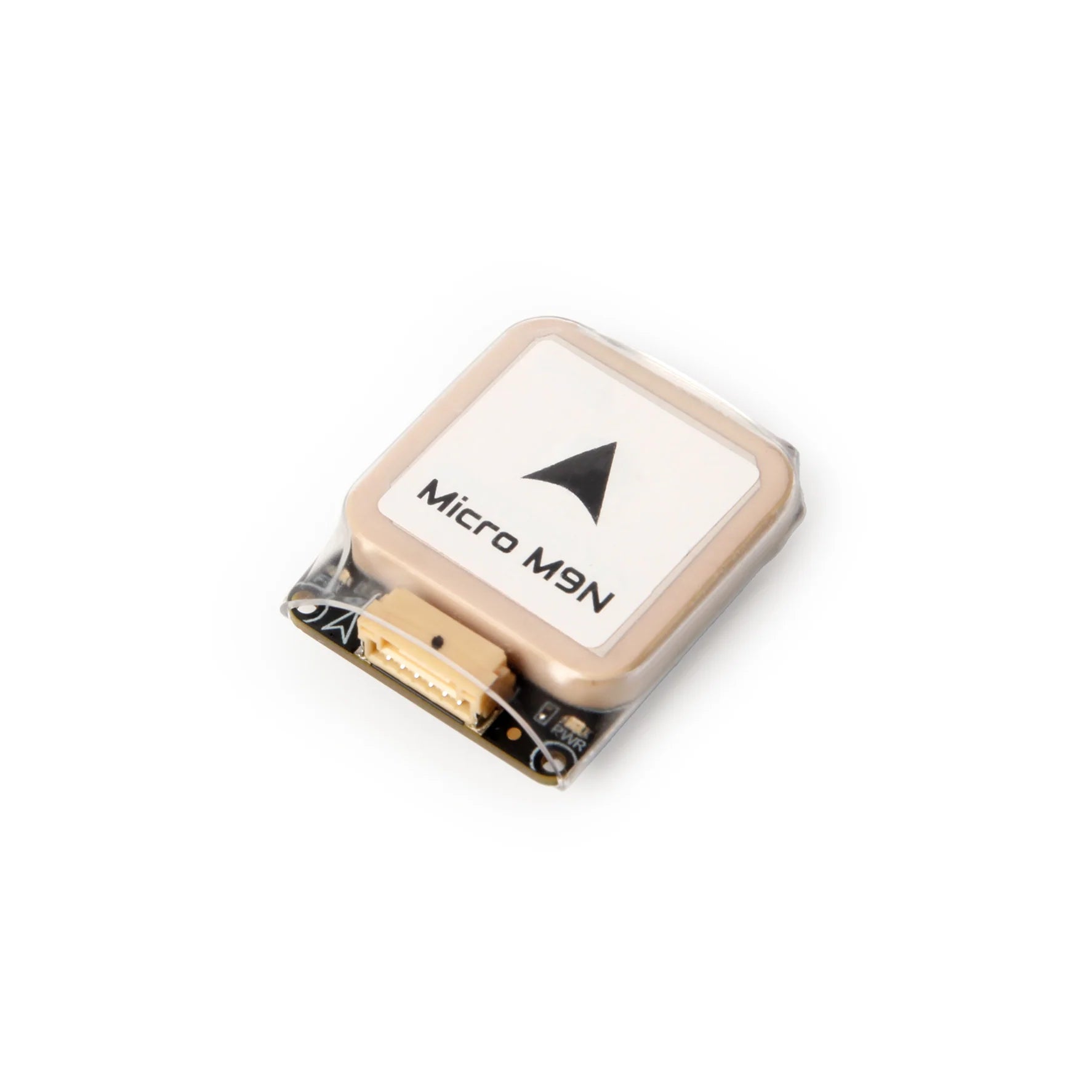

Holybro Micro M9N GPS Module with IST8310 Compass (U-Blox M9N)

The Holybro Micro M9N GPS Module is a high-performance GNSS solution designed for FPV drones and autonomous UAV systems.

Equipped with the U-Blox M9N receiver and IST8310 compass, it supports concurrent GPS, GLONASS, Galileo, and BeiDou for precise navigation, fast update rates, and reliable positioning in demanding environments.

Key Features

• U-Blox M9N GNSS receiver
• IST8310 integrated compass
• Supports up to 4 concurrent GNSS (GPS, GLONASS, Galileo, BeiDou)
• High update rate up to 25Hz
• High-gain 25×25×4mm ceramic patch antenna
• Low-noise power regulator, LNA Gain 22dB
• Compact and lightweight design (14g/16g)

• Compatible with INAV, Ardupilot, PX4, and other flight stacks

Specifications

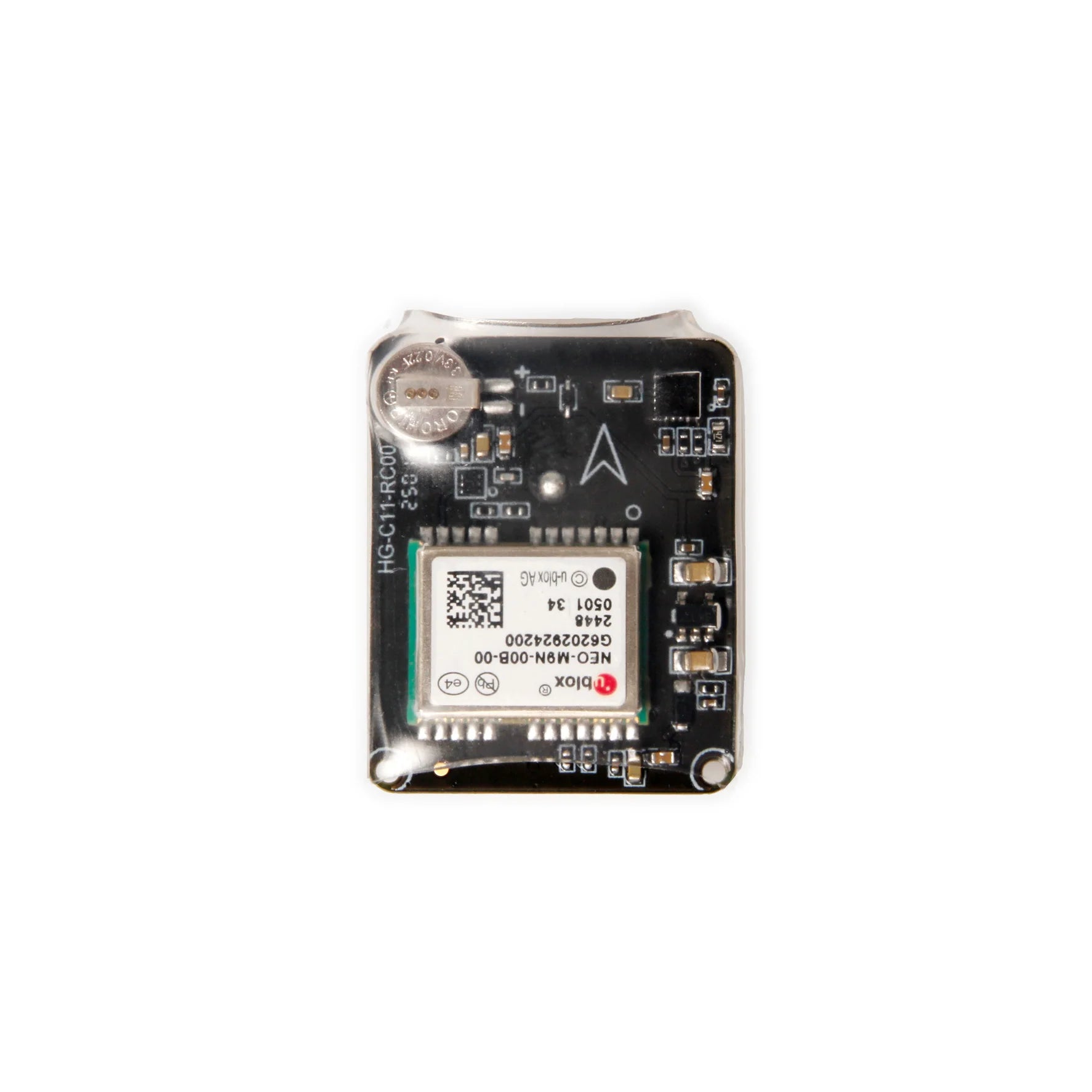

• GNSS Receiver: U-Blox M9N
• Compass: IST8310
• Number of Concurrent GNSS: Up to 4
• Frequency Bands: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
• Output Protocol: UBX (U-Blox), NMEA
• Accuracy: 1.5m CEP
• Navigation Update Rate: up to 25Hz
• Input Voltage: 4.7–5.2V
• Power Consumption: <200mA @ 5V
• Dimensions: 32×26×9mm (w/o case) / 34×28×11mm (with case)
• Weight: 14g (w/o case), 16g (with case)

• Operating Temperature: -40°C to +80°C

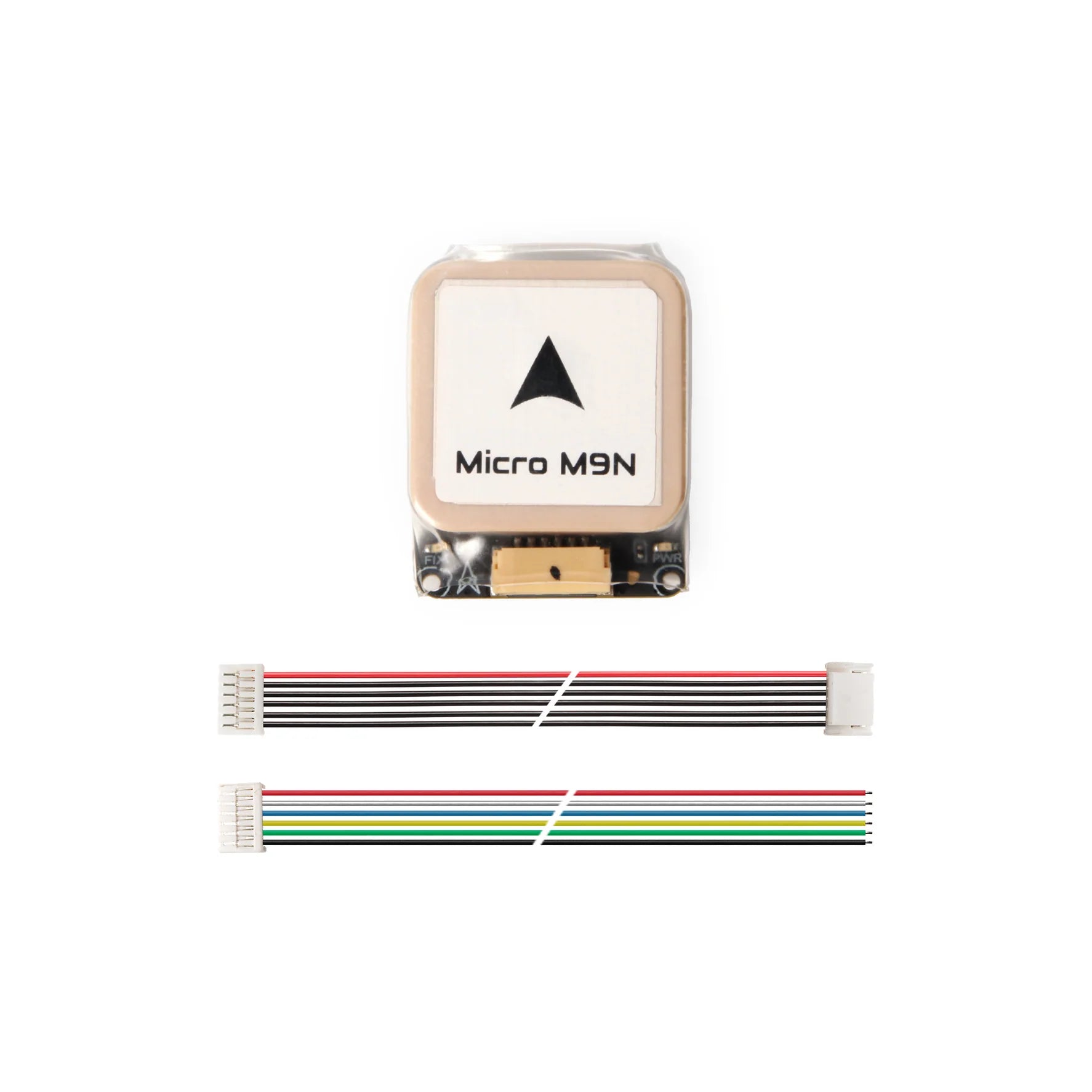

Package Includes

• 1× Holybro Micro M9N GPS Module

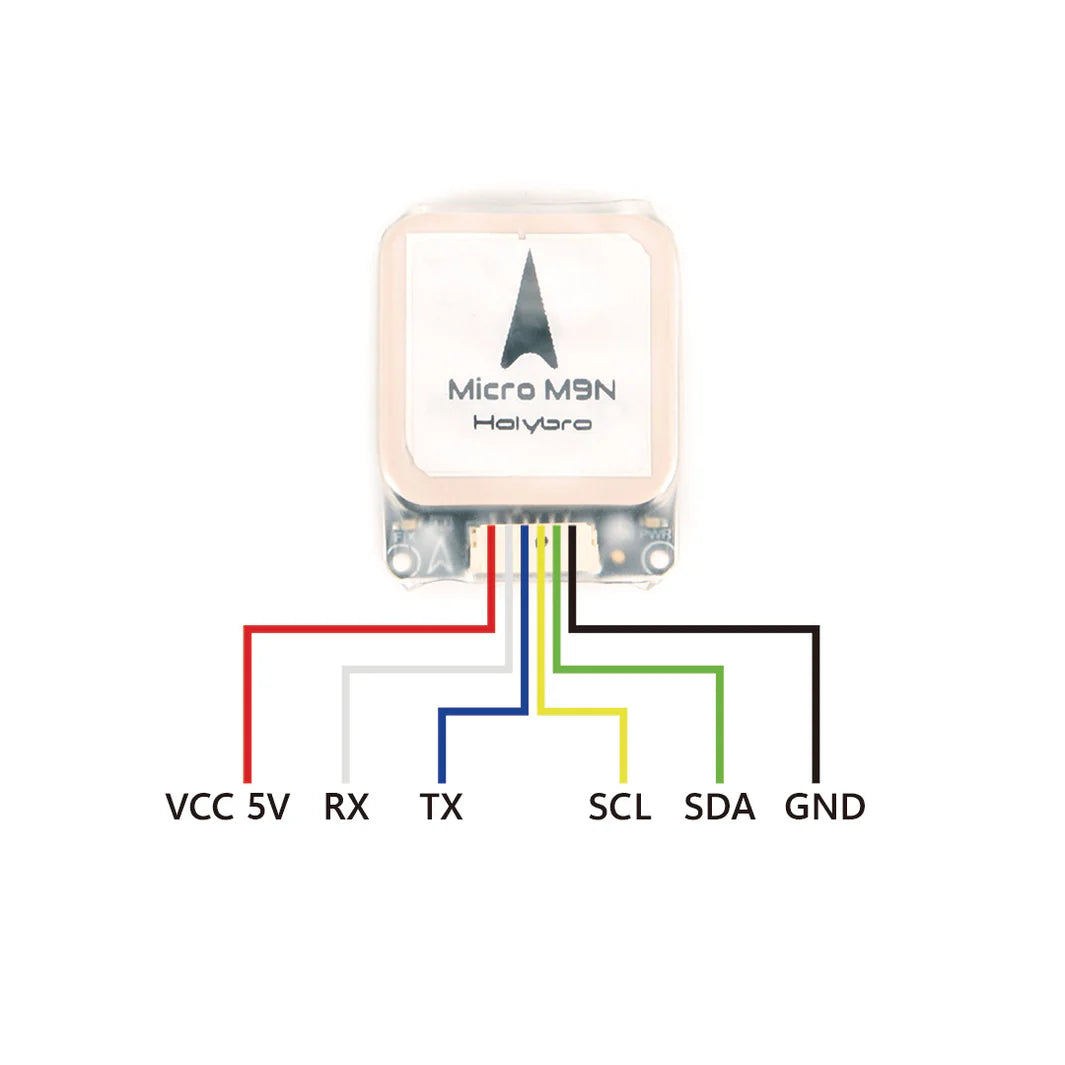

• 1× JST-GH 6-pin Connector (15 cm)

• 1× JST-GH 6-pin Colored Silicone Cable (15 cm)
