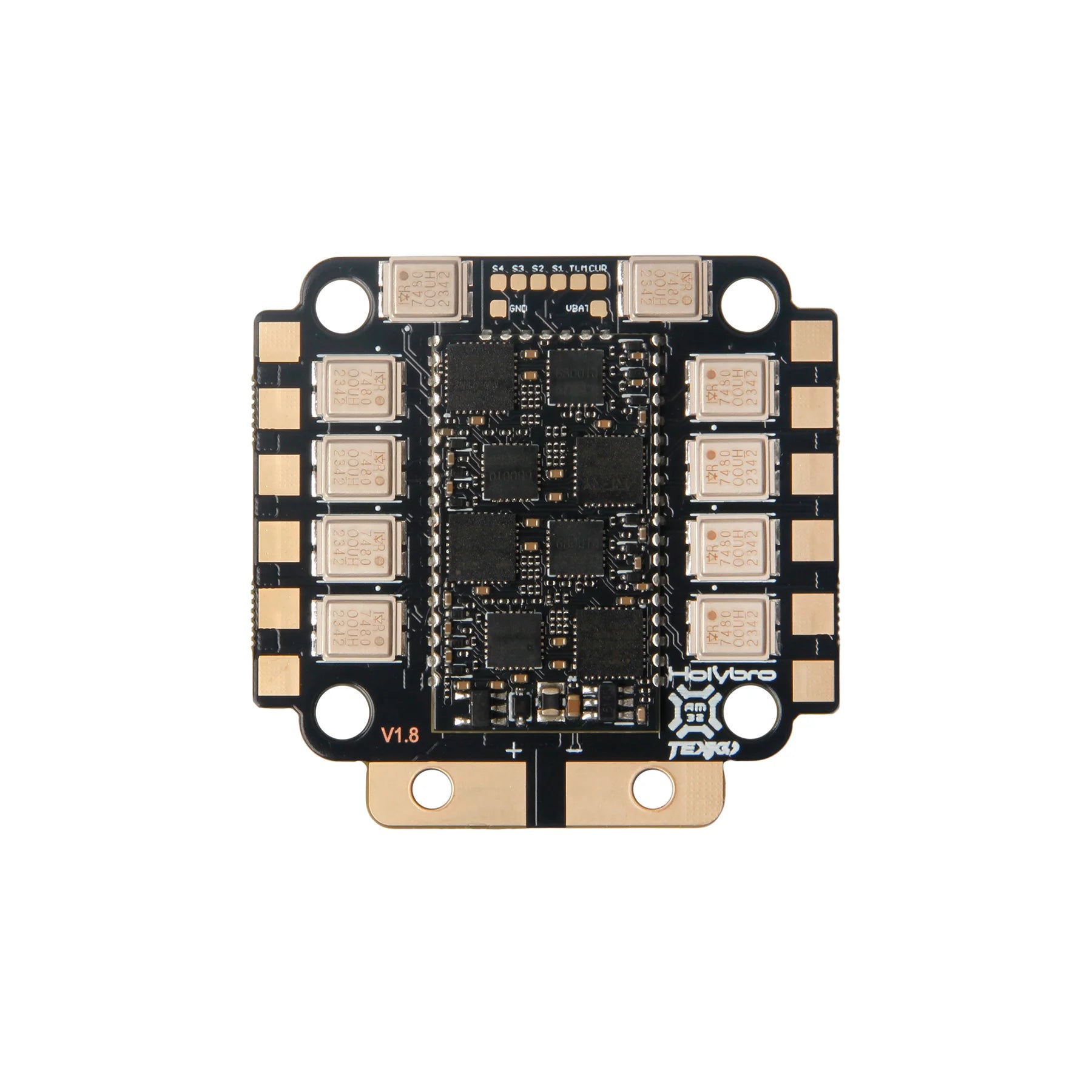

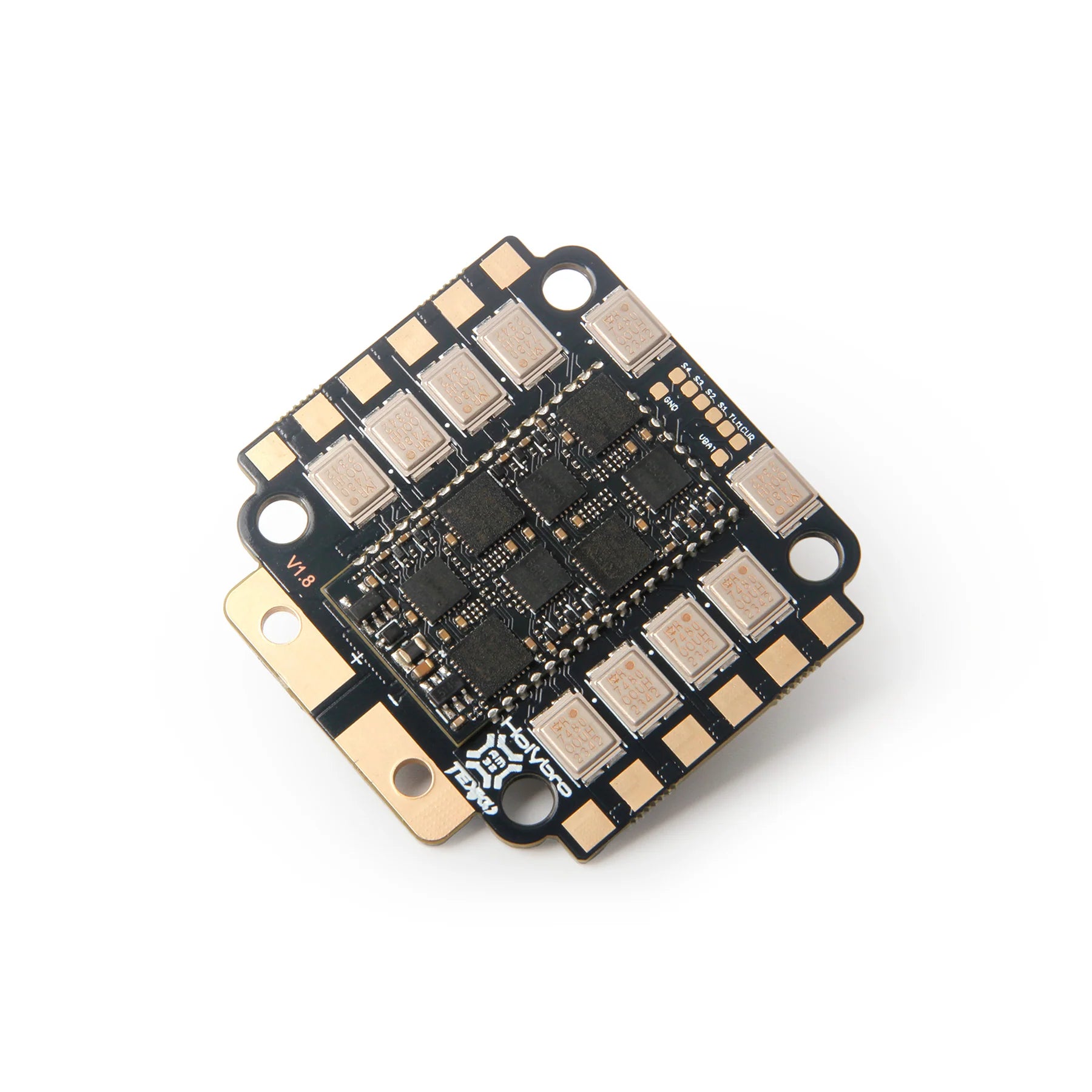

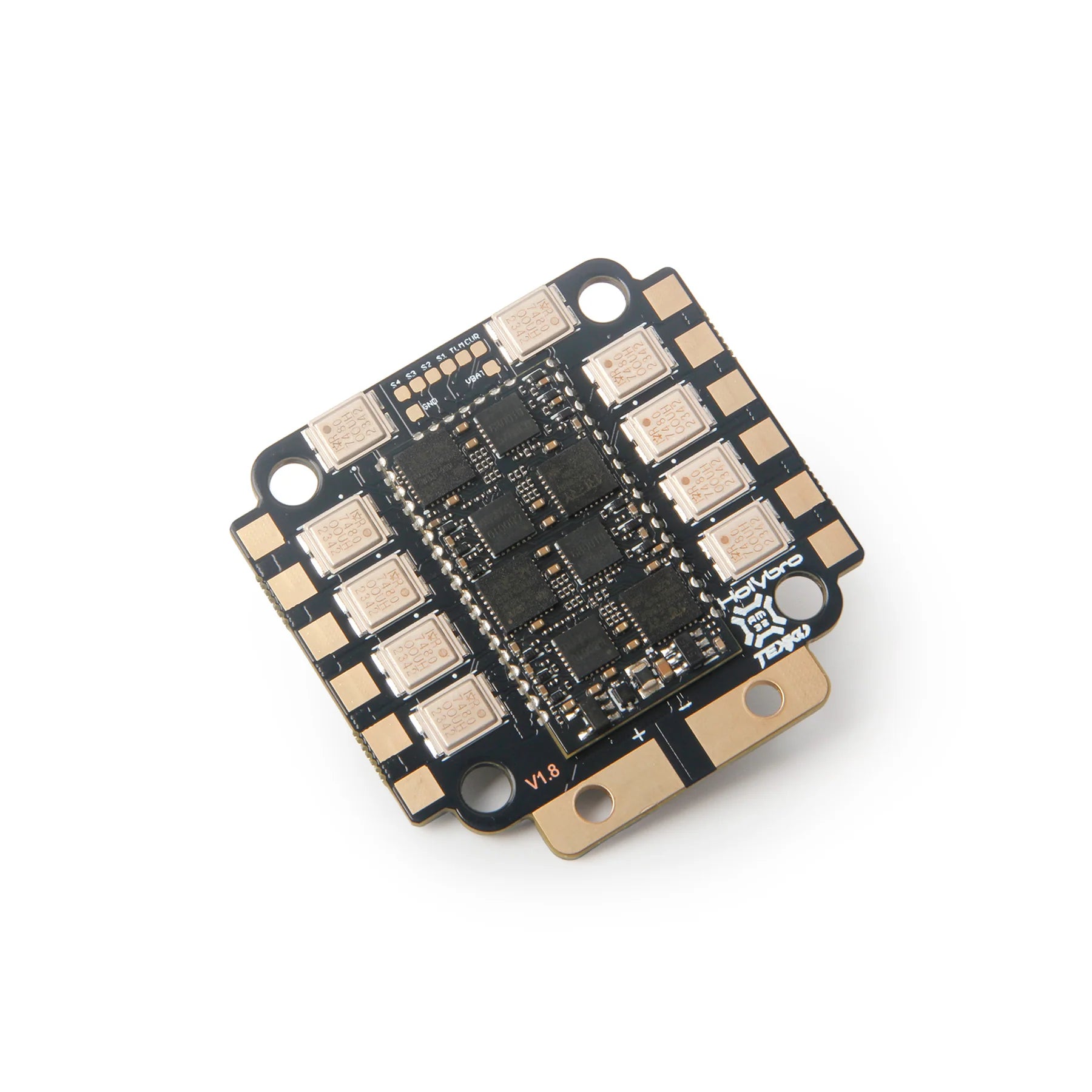

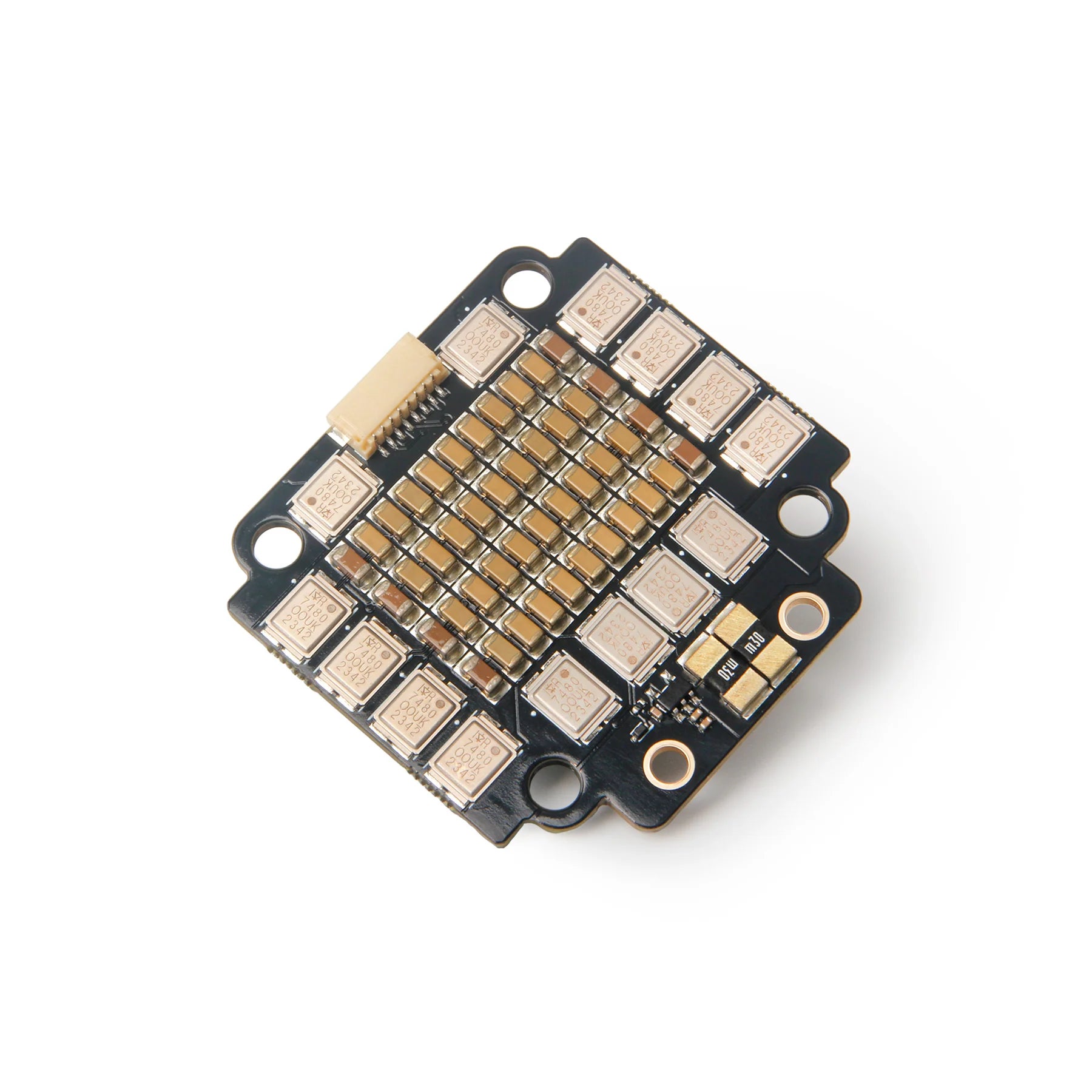

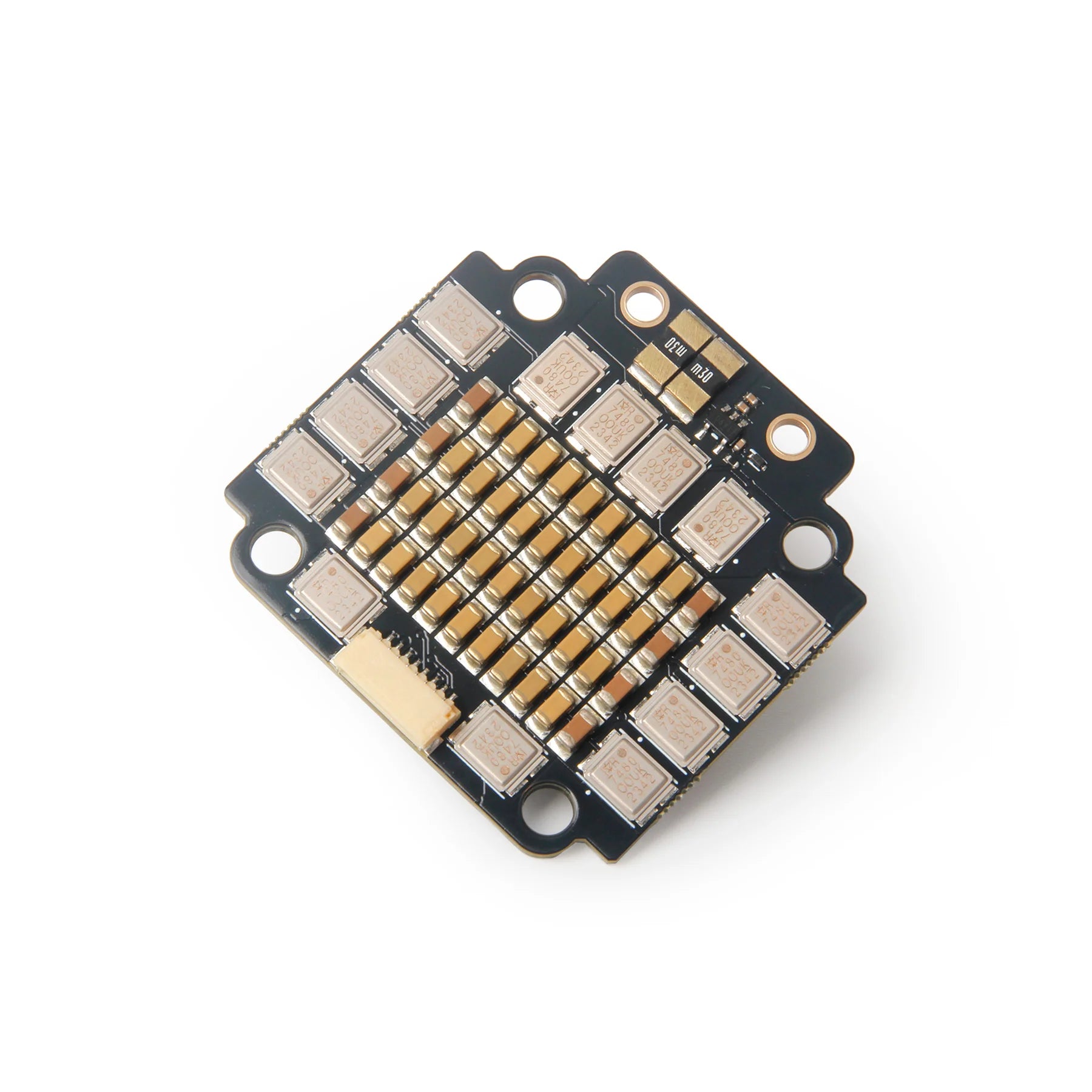

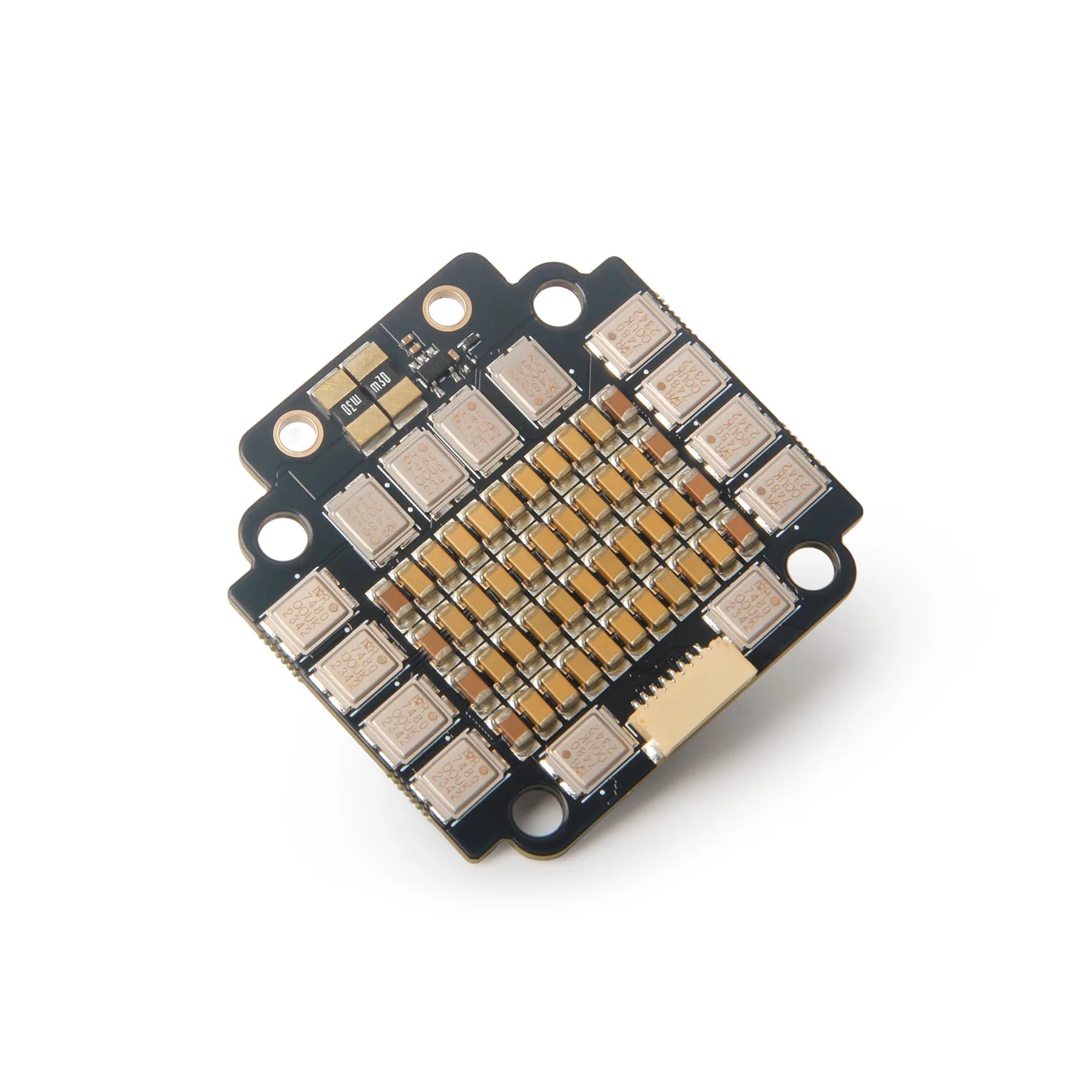

Holybro Tekko32 F4 Metal 4in1 65A ESC (AM32 Firmware)

The Holybro Tekko32 F4 Metal 4in1 65A ESC is a high-performance electronic speed controller designed for FPV drones and professional builds. With a powerful F4 MCU running at 150MHz, metal-cased MOSFETs, and optimized heat dissipation, this ESC ensures smooth control, quick response, and long-term reliability even under heavy loads.

Key Features

• New & faster F4 MCU @ 150MHz (compared to F3 @108MHz & F0 @48MHz)
• PWM Frequency: 16kHz ~ 96kHz
• Metal-cased MOSFETs for superior heat dissipation

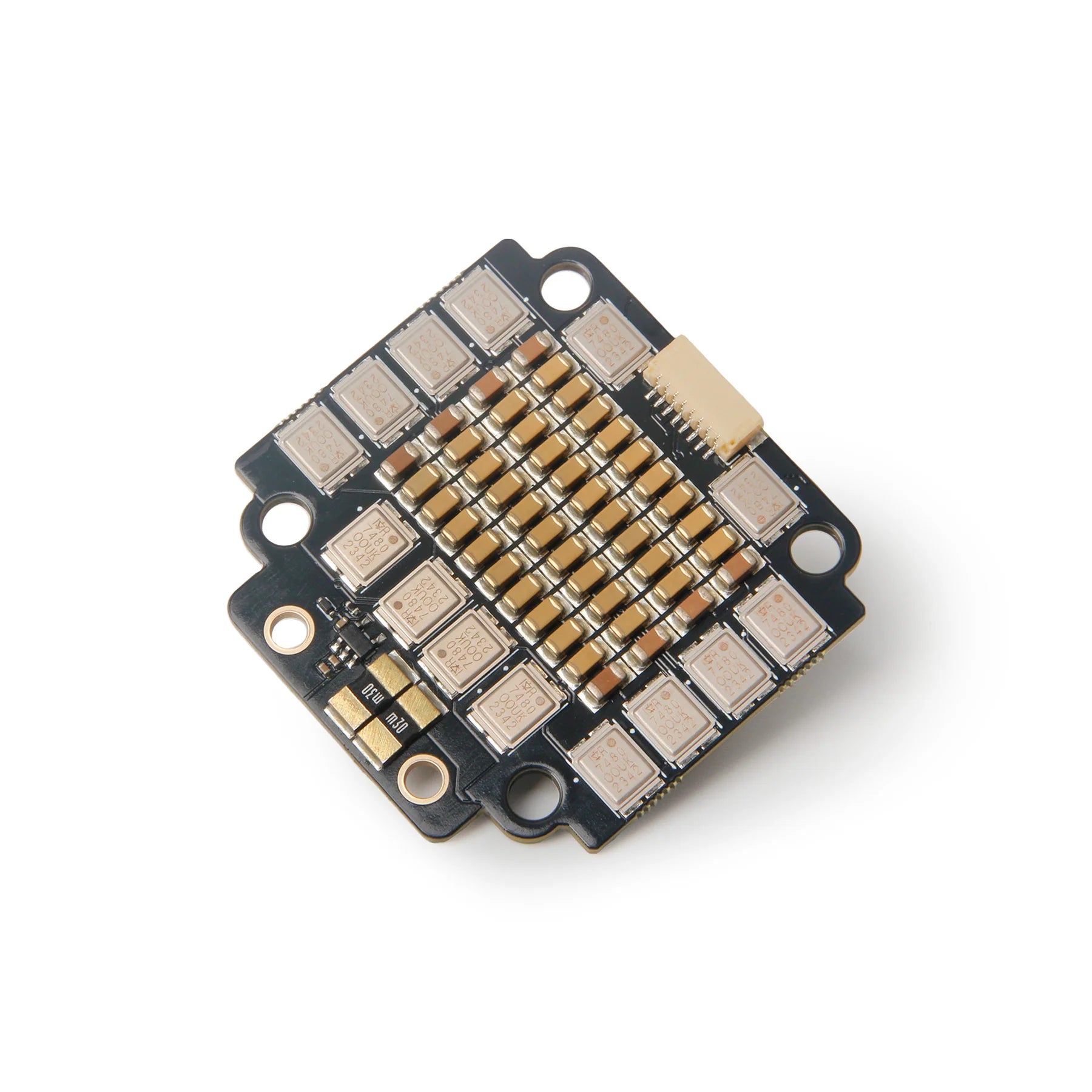

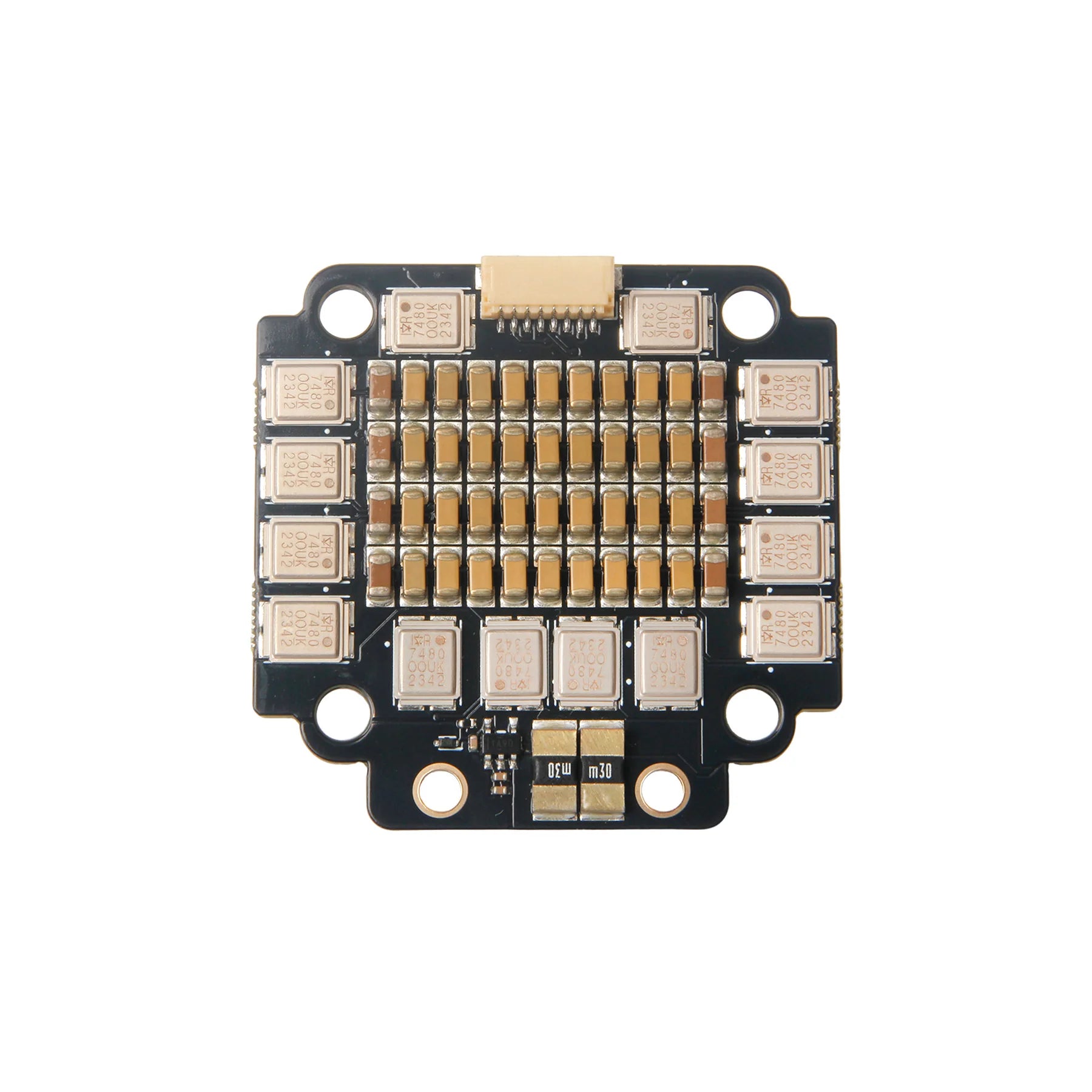

• Massive on-board capacitance for noise filtering (2068uF)
• 3 oz copper PCB design for improved current handling & heat management

• Separate drive & control circuits to reduce electrical interference


Specifications

• Continuous Current: 65A x4
• Burst Current: 75A x4
• Supported Battery: 4–6S LiPo
• Protocols: DShot150/300/600/1200, MultiShot, OneShot, Proshot, PWM
• ESC Telemetry: Supported
• Onboard analog current sensor
• No output BEC
• Firmware: AM32 (Target: AM32_TEKKO32_4IN1_F421)
• Capacitor: 1000uF 35V included (recommended for 6S setup)
• Amperage meter scale ratio: 180
• Dimensions: 43 × 44mm
• Mounting holes: M4 30.5 × 30.5mm (M3 grommets included)

• Weight: 15.8g

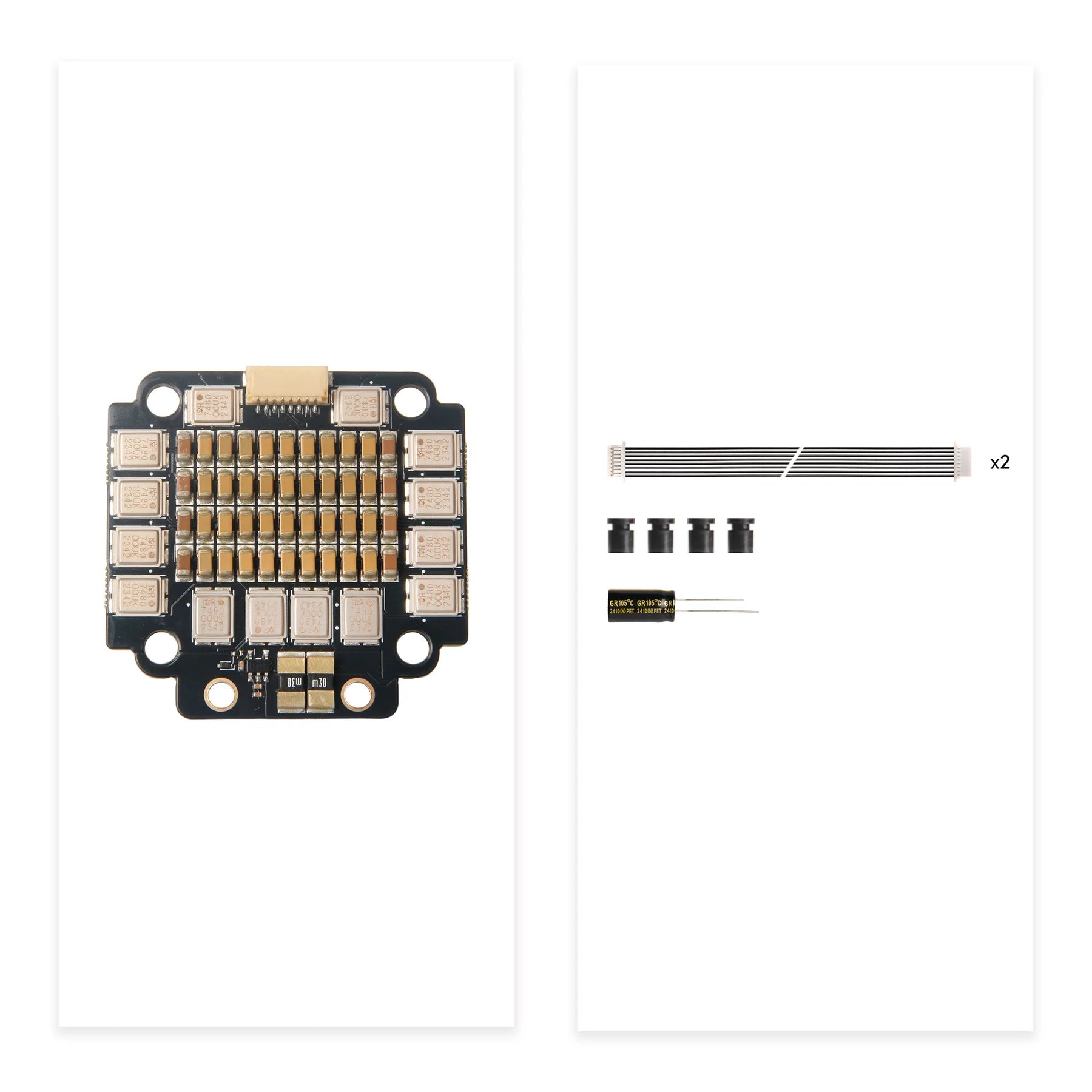

Package Includes

• 1x Holybro Tekko32 F4 Metal 4in1 65A ESC
• 4x M3 Anti-Vibration Silicone Grommet Inserts
• 1x 1000uF 35V Capacitor
• 1x 8-pin to 8-pin 65mm Cable

• 1x 8-pin to 8-pin 25mm Cable
