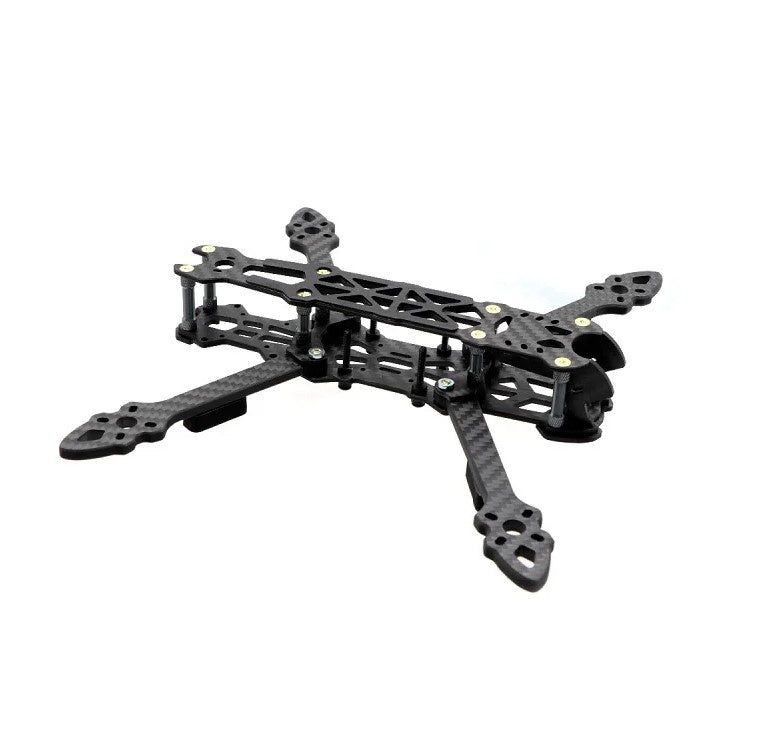

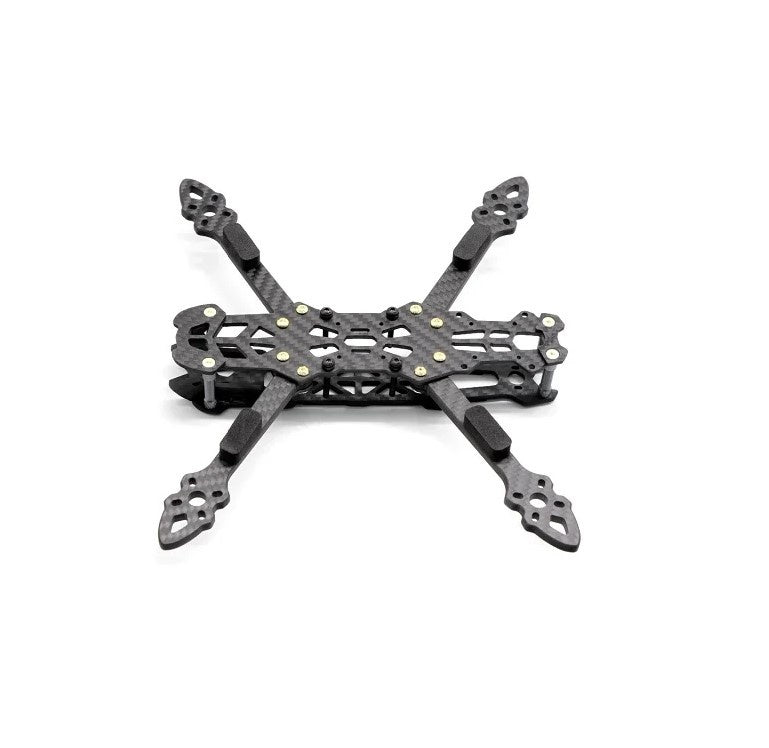

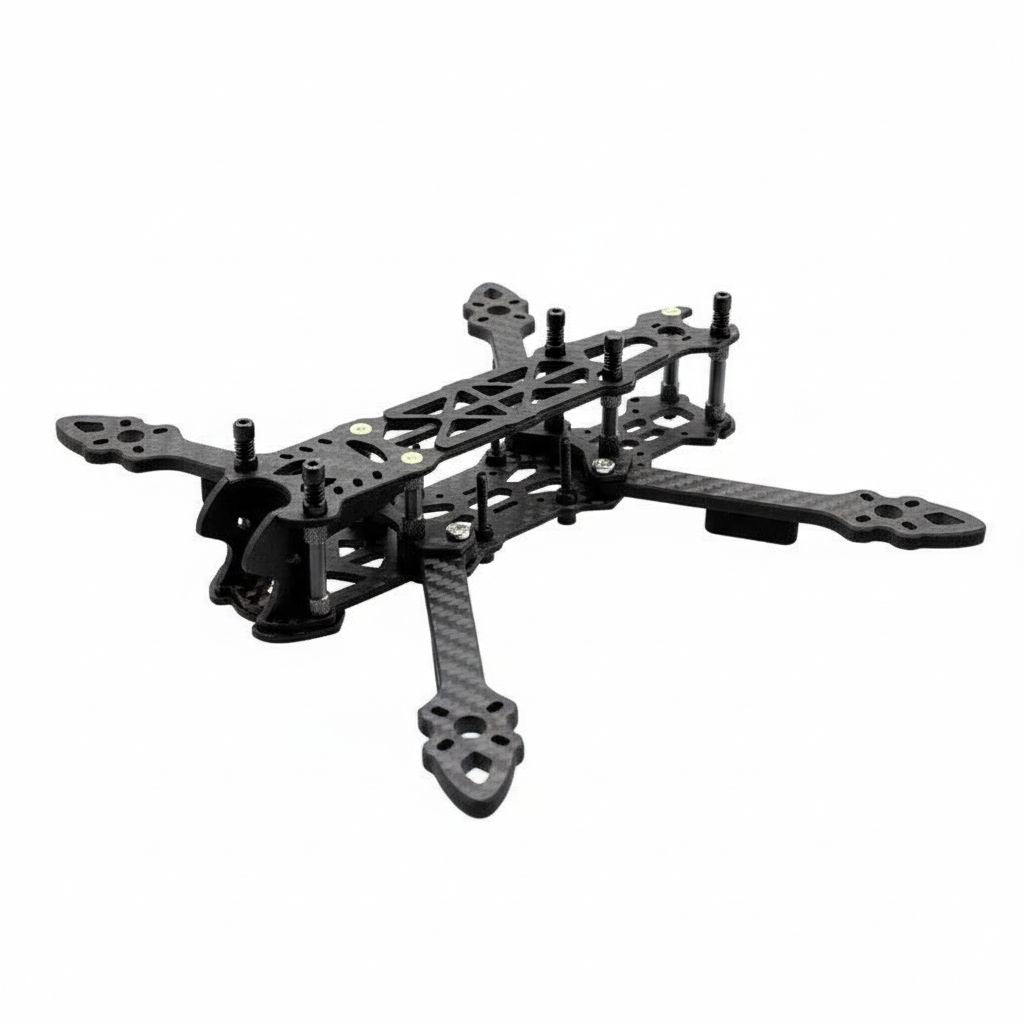

Mark4 V2 Carbon Fiber Frame Kit – 7 Inch FPV Drone Frame (X-Type)

The Mark4 V2 Frame Kit is a professional-grade FPV drone frame designed with high-strength carbon fiber for maximum rigidity and durability.
Its X-Type structure ensures excellent stability, while the modular design supports multiple flight controller and VTX mounting options.

Key Features

• Carbon fiber construction for high strength and low weight

• Arm thickness:
  • 6 mm
• Adjustable mounting options for FC (20x20 mm / 30.5x30.5 mm)
• Camera side plates with 19 mm mounting spacing
• Spacious interior (35 mm height) for easy component integration
• Optimized for long-range and endurance FPV builds

Specifications (7 inch / 295 mm version)

• Frame type: X-Type
• Wheelbase: 295 mm
• Dimensions: 193.75 mm × 223.06 mm

• Bottom plate thickness: 3.0 mm

• Middle plate thickness: 3.0 mm
• Top plate thickness: 2.0 mm

• Camera plate thickness: 2.5 mm

• Arm thickness: 6.0 mm

• Motor mounting: 16×16 mm and 19×19 mm

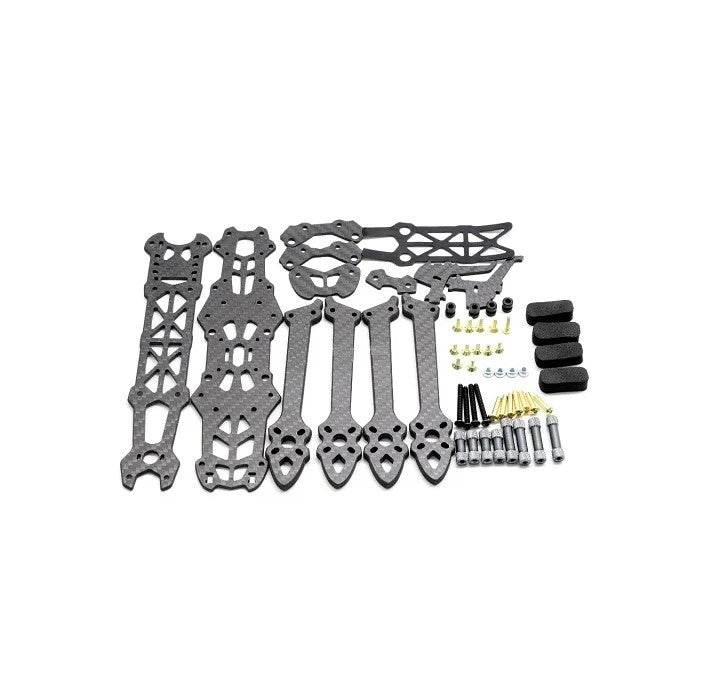

Package includes

• 1x Mark4 V2 carbon fiber frame kit (selected size)

• 1x set of carbon arms & plates

• 1x camera side plate set

• 1x hardware & screws kit

• 1x battery strap
