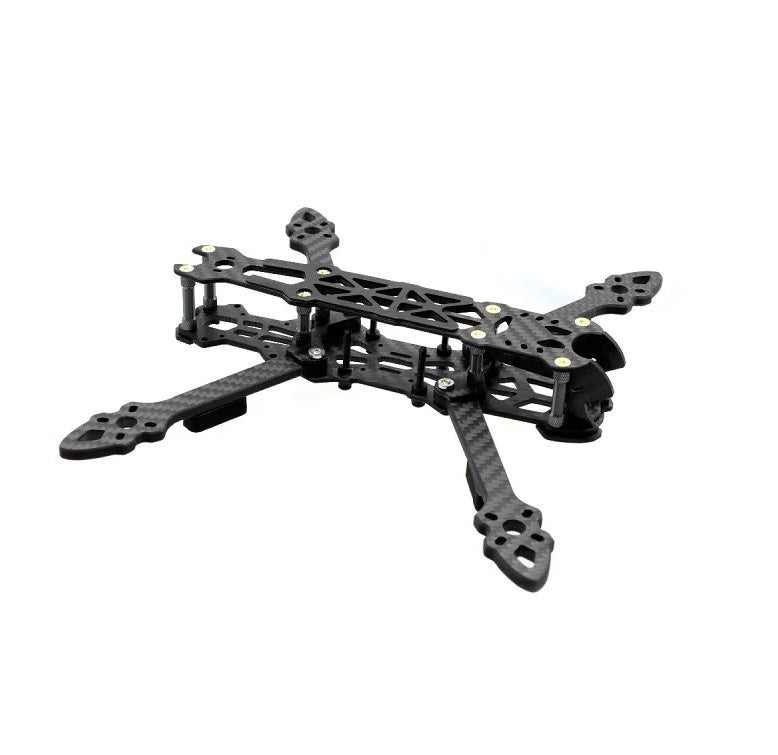

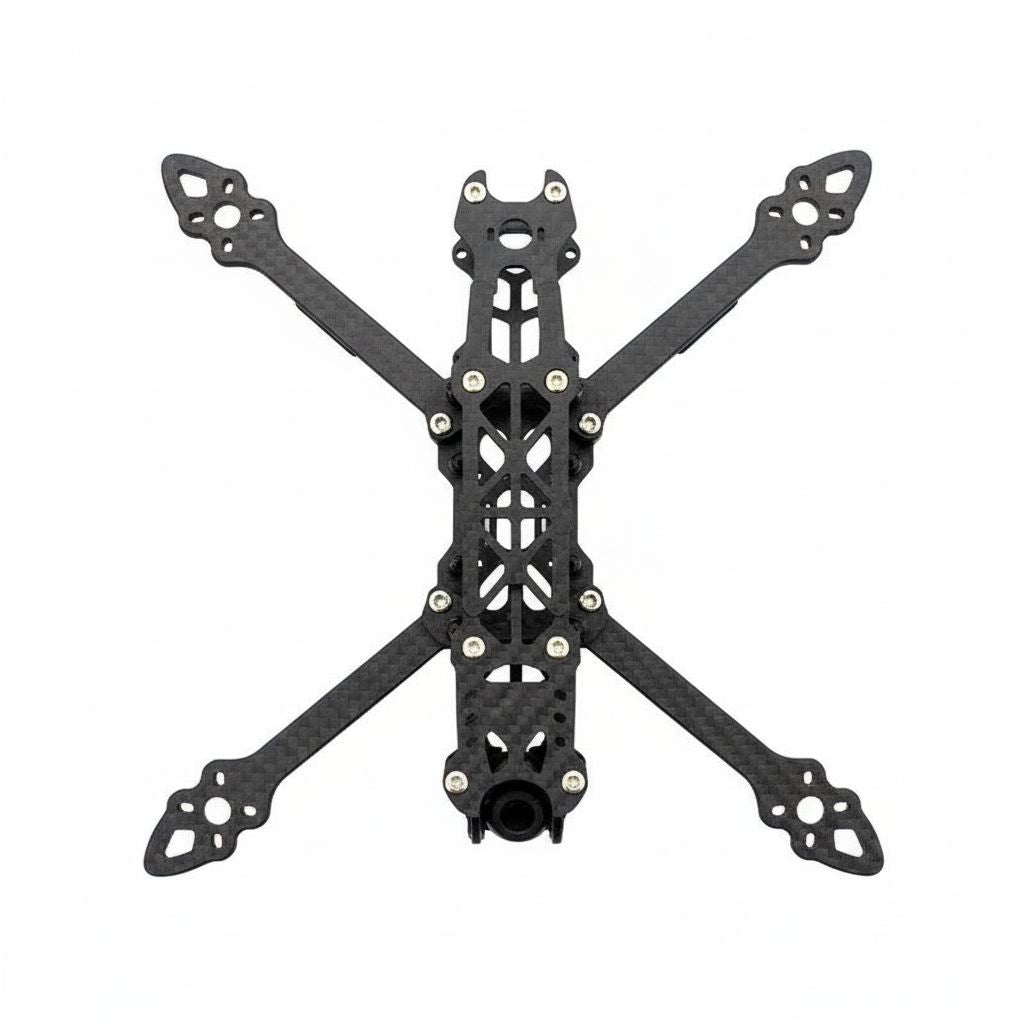

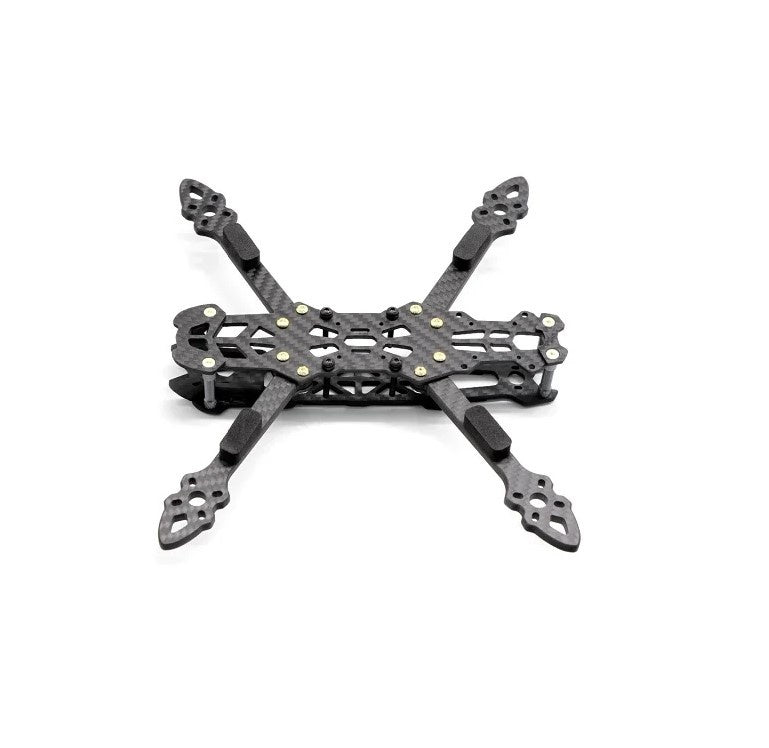

Mark4 V2 Carbon Fiber Frame Kit – 10 Inch FPV Drone Frame (X-Type)

The Mark4 V2 Frame Kit is a professional-grade FPV drone frame designed with high-strength carbon fiber for maximum rigidity and durability.
Its X-Type structure ensures excellent stability, while the modular design supports multiple flight controller and VTX mounting options.

Key Features

• Carbon fiber construction for high strength and low weight

• Arm thickness:
  • 7.5 mm
• Adjustable mounting options for FC (20x20 mm / 30.5x30.5 mm)
• Camera side plates with 19 mm mounting spacing
• Spacious interior (35 mm height) for easy component integration
• Optimized for long-range and endurance FPV builds


Specifications (10 inch / 427 mm version)

• Frame Type: X-Type
• Wheelbase: 427 mm
• Dimensions: 268.18 mm × 332.07 mm
• Bottom Plate Thickness: 3.0 mm
• Middle Plate Thickness: 3.0 mm
• Top Plate Thickness: 2.0 mm
• Arm Thickness: 7.5 mm
• Connecting Plate Thickness: 2.0 mm
• Camera Side Plate Thickness: 2.5 mm
• Camera Mounting Holes: 19 mm spacing
• VTX Mounting Holes: 20×20 mm & 30.5×30.5 mm
• Flight Controller Mounting Holes: 20×20 mm & 30.5×30.5 mm
• Internal Space Height: 35 mm

• Motor Mounting Holes: 16×16 mm & 19×19 mm

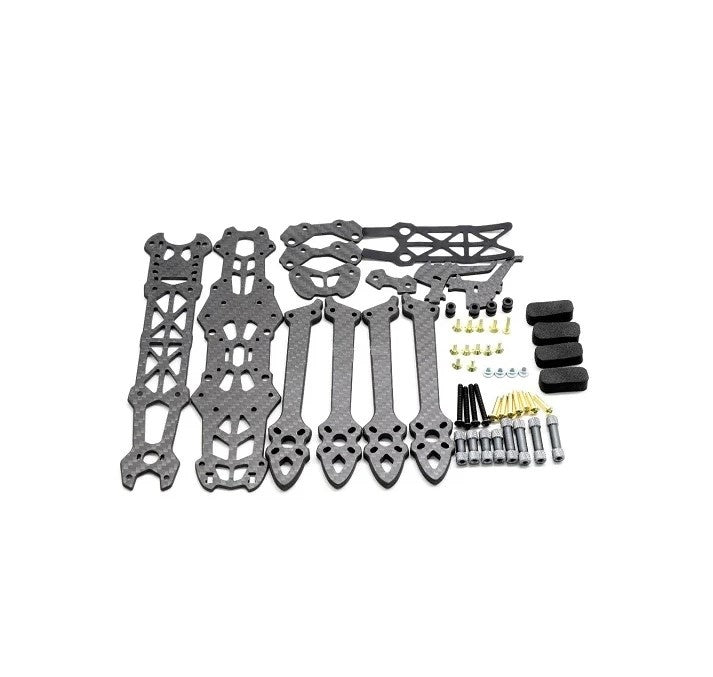

Package includes

• 1x Mark4 V2 carbon fiber frame kit (selected size)

• 1x set of carbon arms & plates

• 1x camera side plate set

• 1x hardware & screws kit

• 1x battery strap
